M7PPK-3706R

Active

D-SUB CABLE MMM37K/MC37M/MMM37K

Search across all available documentation for this part.

Active

D-SUB CABLE MMM37K/MC37M/MMM37K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

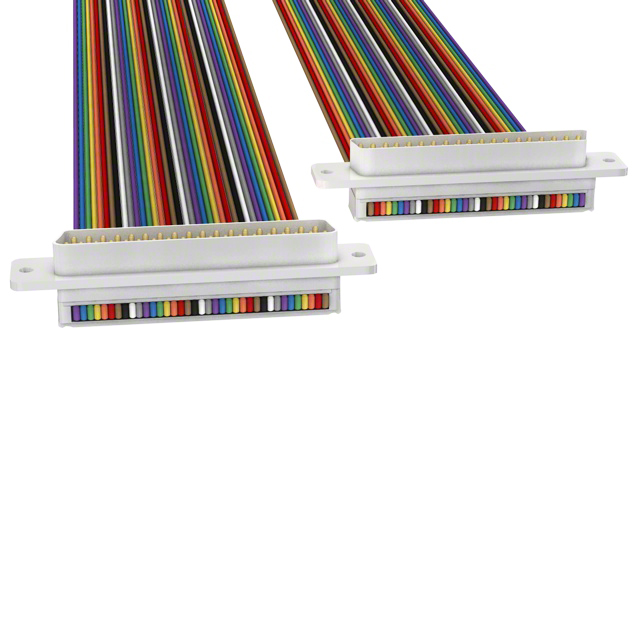

D-Sub Cable Assembly DB37 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Plug, Male Pins Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

D-SUB CABLE MMM25K/MC26M/MMM25K

Part	Contact Finish	Type	2nd Connector	Length	Length	Color	1st Connector	Usage	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions
3M M7PPK-2510R	Gold	DB25	Plug, Male Pins	10 ft	3.05 m	Multiple, Ribbon	Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded
3M M7PPK-1506J	Gold	DB15	Plug, Male Pins	6 ft	1.83 m		Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	15
3M M7PPK-3706R	Gold	DB37	Plug, Male Pins	6 ft	1.83 m	Multiple, Ribbon	Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	37
3M M7PPK-2506J	Gold	DB25	Plug, Male Pins	6 ft	1.83 m		Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded
3M M7PPK-1510R	Gold	DB15	Plug, Male Pins	10 ft	3.05 m	Multiple, Ribbon	Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	15
3M M7PPK-1506R	Gold	DB15	Plug, Male Pins	6 ft	1.83 m	Multiple, Ribbon	Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	15
3M M7PPK-0906R	Gold	DB9	Plug, Male Pins	6 ft	1.83 m	Multiple, Ribbon	Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	9
3M M7PPK-0906J	Gold	DB9	Plug, Male Pins	6 ft	1.83 m		Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	9
3M M7PPK-0910R	Gold	DB9	Plug, Male Pins	10 ft	3.05 m	Multiple, Ribbon	Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	9
3M M7PPK-3710R	Gold	DB37	Plug, Male Pins	10 ft	3.05 m	Multiple, Ribbon	Plug, Male Pins	Patch	0.76 Ám	30 Áin	Unshielded	37
