R113081097

Active

Radiall USA, Inc.

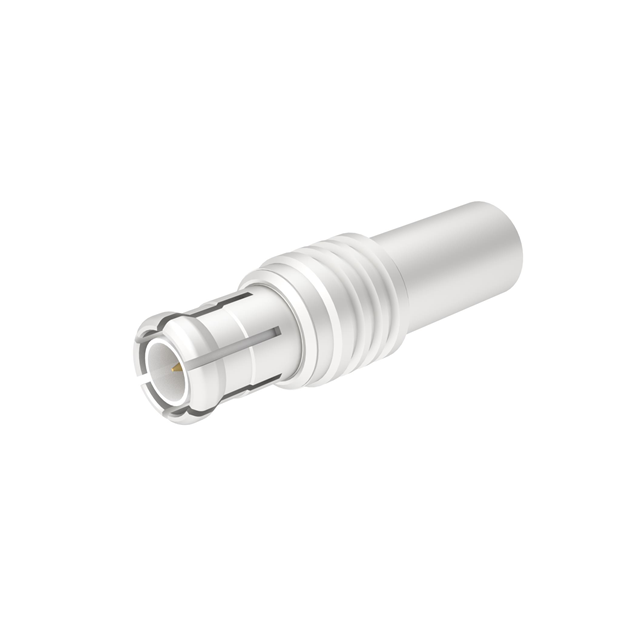

MCX / STRAIGHT PLUG CRIMP TYPE N

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX / STRAIGHT PLUG CRIMP TYPE N

Technical Specifications

Parameters and characteristics for this part

Specification	R113081097

Body Finish	White Bronze
Body Material	Bronze
Cable Group	RG-178
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Non-Magnetic
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Voltage Rating	Mounting Type	Center Contact Plating	Body Finish	Mating Cycles	Body Material	Fastening Type	Center Contact Material	Number of Ports	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Shield Termination	Cable Group	Dielectric Material	Frequency - Max [Max]	Housing Color	Connector Type	Connector Style	Cable Group	Features
Radiall USA, Inc. R113083000W	335 V	Free Hanging (In-Line)	Gold	Gold	500	Brass	Snap-On	Beryllium Copper	1	50 Ohms	155 °C	-55 °C	Crimp	Crimp	RG-316DS	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold	Male Pin Plug	MCX
Radiall USA, Inc. R113082000	170 V	Free Hanging (In-Line)	Gold	Gold	500	Brass	Snap-On	Brass	1	50 Ohms	155 °C	-55 °C	Crimp	Crimp	316 RG-174	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold	Male Pin Plug	MCX
Radiall USA, Inc. R113082000W	170 V	Free Hanging (In-Line)	Gold	Gold	500	Brass	Snap-On	Brass	1	50 Ohms	155 °C	-55 °C	Crimp	Crimp	188 316 RG-174	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold	Male Pin Plug	MCX
Radiall USA, Inc. R113081000W	170 V	Free Hanging (In-Line)	Gold	Gold	500	Brass	Snap-On	Brass	1	50 Ohms	155 °C	-55 °C	Crimp	Crimp	RG-178	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold	Male Pin Plug	MCX	196
Radiall USA, Inc. R113083000	170 V	Free Hanging (In-Line)	Gold	Gold	500	Brass	Snap-On	Beryllium Copper	1	50 Ohms	155 °C	-55 °C	Crimp	Crimp	RG-316DS	Polytetrafluoroethylene (PTFE)	6000 MHz	Gold	Male Pin Plug	MCX
Radiall USA, Inc. R113081097	170 V	Free Hanging (In-Line)	Gold	White Bronze	500	Bronze	Snap-On	Bronze	1	50 Ohms	125 °C	-55 °C	Crimp	Crimp	RG-178	Polytetrafluoroethylene (PTFE)	6000 MHz	Silver	Male Pin Plug	MCX		Non-Magnetic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.79

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
