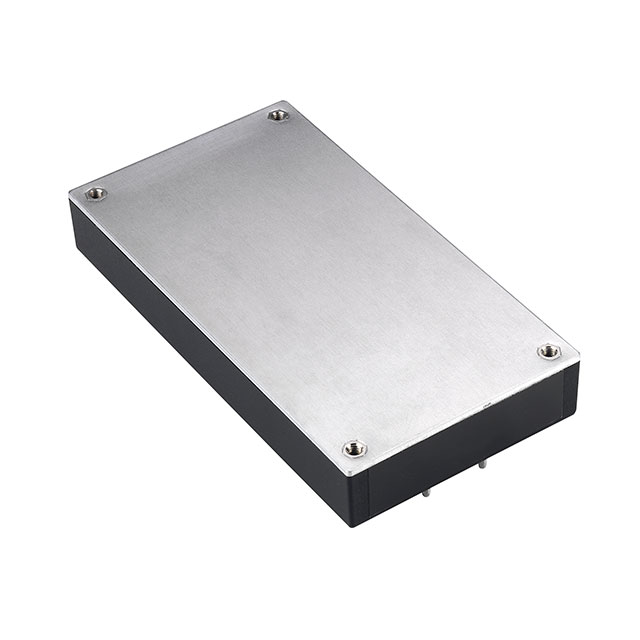

CBM100S360

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 36V 101W

Search across all available documentation for this part.

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 36V 101W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 48V 101W

Part	Power (Watts)	Approval Agency	Package / Case	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Applications	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Mounting Type	Efficiency	Load Regulation	Line Regulation	Current - Output (Max)
Cincon Electronics Co. LTD CBM100S480	101 W	CE, cURus, FCC, TUV	Module	60950-1	90 VAC	264 VAC	2.1 A	48 V	ITE (Commercial)	Enclosed	2.4 "	61 mm	4.6 "	17 mm	0.67 in	116.8 mm	1	Through Hole	90.5 %	1 %	0.5 %
Cincon Electronics Co. LTD CBM100S360	101 W	CE, cURus, FCC, TUV	Module	60950-1	90 VAC	264 VAC		36 V	ITE (Commercial)	Enclosed	2.4 "	61 mm	4.6 "	17 mm	0.67 in	116.8 mm	1	Through Hole	91 %	1 %	0.5 %	2.8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 36V 2.8A 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
