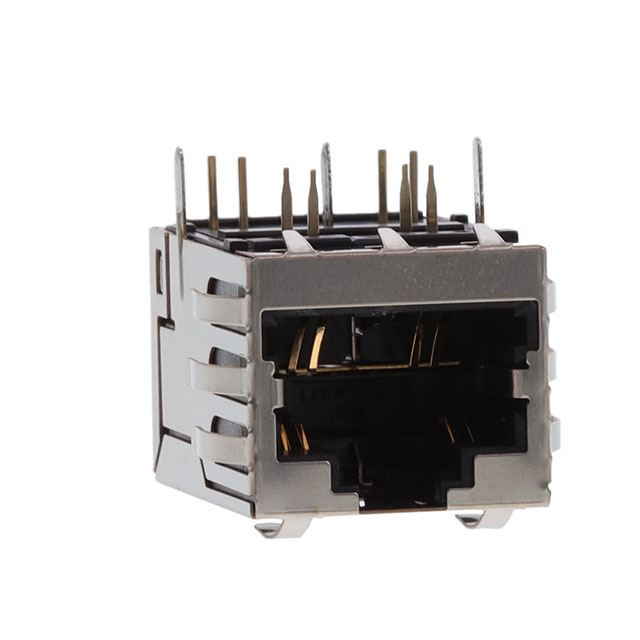

SS-77100-004

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-77100-004

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c
Number of Rows	1
Orientation	90 °
Ratings	Cat7a
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Shielding	Number of Positions/Contacts	Connector Type	Number of Rows	Contact Material	LED Color	Housing Material	Ratings	Termination	Contact Finish	Mounting Type	Tab Direction	Contact Finish Thickness	Contact Finish Thickness	Orientation	Number of Ports
BEL MAGNETIC SOLUTIONS SS-77100-015	Shielded	8p8c (RJ45 Ethernet)	Jack
BEL MAGNETIC SOLUTIONS SS-77100-004	Shielded EMI Finger	8p8c	Jack	1	Copper Alloy	Does Not Contain LED	Thermoplastic	Cat7a	Solder	Gold	Through Hole	Up	50 µin	1.27 µm	90 °	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (ARJ45, Ethernet, Split Pairs) 90° Angle (Right) Shielded, EMI Finger Cat7a
