73S8009C-20IM/F
ActiveAnalog Devices Inc./Maxim Integrated

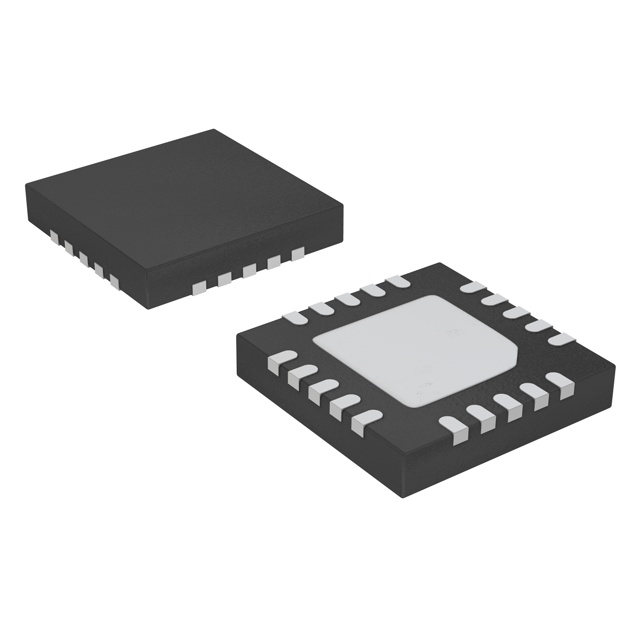

IC PWR MGMT/SMART CARD INT 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
73S8009C-20IM/F
ActiveAnalog Devices Inc./Maxim Integrated
IC PWR MGMT/SMART CARD INT 20QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 73S8009C-20IM/F | 73S8009 Series |
|---|---|---|
| - | - | |
| Applications | Smart Card Reader, Writer | Smart Card Reader, Writer |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 20-VFQFN Exposed Pad | 28-SOIC, 32-VFQFN Exposed Pad, 20-VFQFN Exposed Pad |
| Package / Case | - | 0.295 in |
| Package / Case | - | 7.5 mm |
| Supplier Device Package | 20-QFN (4x4) | 28-SOIC, 32-QFN (5x5), 20-QFN (4x4) |
| Voltage - Supply [Max] | 6.5 V | 3.6 - 6.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
73S8009 Series
IC SMART CARD LEVEL SHIFT 28SOIC
| Part | Mounting Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Package / Case [x] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated 73S8009R-IL/F | Surface Mount | Smart Card Reader, Writer | 85 °C | -40 °C | 28-SOIC | 2.7 V | 3.6 V | 28-SOIC | 0.295 in | 7.5 mm |
Analog Devices Inc./Maxim Integrated 73S8009C-32IM/F | Surface Mount | Smart Card Reader, Writer | 85 °C | -40 °C | 32-QFN (5x5) | 2.7 V | 6.5 V | 32-VFQFN Exposed Pad | ||
Analog Devices Inc./Maxim Integrated 73S8009C-32IM/F | ||||||||||
Analog Devices Inc./Maxim Integrated 73S8009R-IMR/F | Surface Mount | Smart Card Reader, Writer | 85 °C | -40 °C | 20-QFN (4x4) | 2.7 V | 3.6 V | 20-VFQFN Exposed Pad | ||
Analog Devices Inc./Maxim Integrated 73S8009C-20IM/F | Surface Mount | Smart Card Reader, Writer | 85 °C | -40 °C | 20-QFN (4x4) | 2.7 V | 6.5 V | 20-VFQFN Exposed Pad | ||
Analog Devices Inc./Maxim Integrated 73S8009R-IM/F | Surface Mount | Smart Card Reader, Writer | 85 °C | -40 °C | 20-QFN (4x4) | 2.7 V | 3.6 V | 20-VFQFN Exposed Pad | ||
Analog Devices Inc./Maxim Integrated 73S8009C-32IMR/F | Surface Mount | Smart Card Reader, Writer | 85 °C | -40 °C | 32-QFN (5x5) | 2.7 V | 6.5 V | 32-VFQFN Exposed Pad | ||
Analog Devices Inc./Maxim Integrated 73S8009CN-32IM/F | Surface Mount | Smart Card Reader, Writer | 85 °C | -40 °C | 32-QFN (5x5) | 2.7 V | 6.5 V | 32-VFQFN Exposed Pad |
Description
General part information
73S8009 Series
Smart Card Reader, Writer PMIC 20-QFN (4x4)
