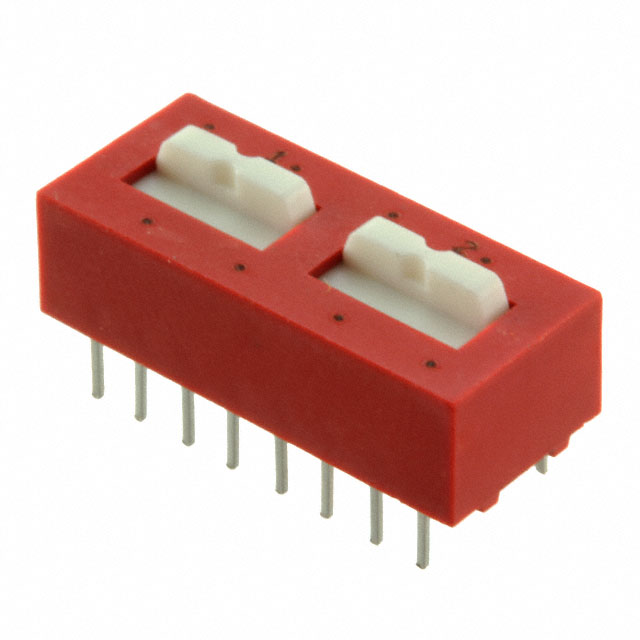

78K02T

Active

Grayhill Inc.

SWITCH SLIDE DIP DPDT 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP DPDT 0.15A 30V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP DPDT 0.15A 30V

Part	Actuator Level	Contact Finish	Body Material	Washable	Actuator Type	Contact Material	Height Above Board [z]	Height Above Board [z]	Termination Style	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Voltage Rating	Mechanical Life	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Mounting Type	Circuit
Grayhill Inc. 78K02T	Raised	Gold	Thermoplastic		Slide (Standard)	Copper Alloy	8 mm	0.315 in	PC Pin	0.1 in	Full	2.54 mm	2	30 VDC	2000 Cycles	22.35 mm	0.88 in	85 °C	-40 °C	2000 Steps	Through Hole	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch DPDT 2 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
