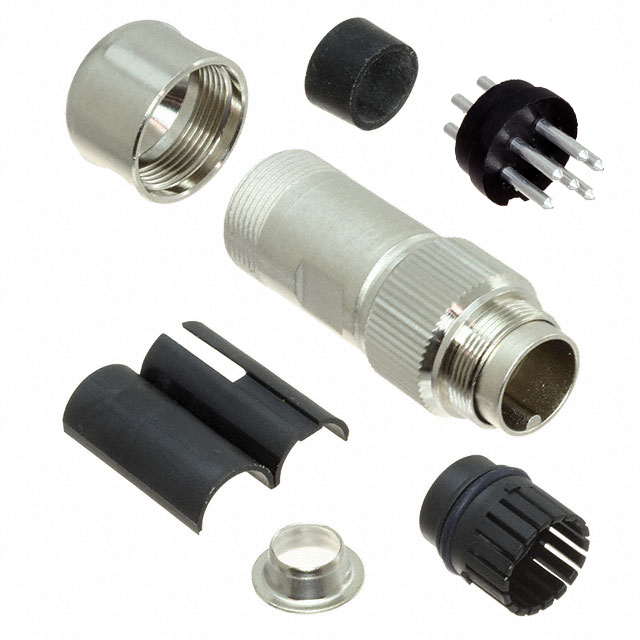

Specification	C09131H0061014U

Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Silver
Fastening Type	Threaded
Features	Coupling Nut, Strain Relief, Backshell
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-6
Termination	Solder Cup

C09131H Series

Part	Orientation	Termination	Shell Finish	Shell Material	Color	Connector Type	Mounting Type	Features	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Contact Finish - Mating	Shielding	Shell Size - Insert	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Primary Material
Amphenol Tuchel Industrial C09131H0031002U	Keyed	Solder Cup	Nickel	Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Strain Relief	60 V	100 °C	-40 °C	3	Silver	Shielded	M16-3	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	10 A	Metal
Amphenol Tuchel Industrial C09131H0081002U	Keyed	Solder Cup	Nickel	Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Strain Relief	60 V	100 °C	-40 °C	8	Silver	Shielded	M16-8	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	7 A	Metal
Amphenol Tuchel Industrial C09131H0081014U	Keyed	Solder Cup	Nickel	Zinc Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Backshell Coupling Nut Strain Relief		100 °C	-40 °C	8	Silver		M16-8	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K		Metal
Amphenol Tuchel Industrial C09131H0051002U	Keyed	Solder Cup	Nickel	Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Strain Relief	60 V	100 °C	-40 °C	5	Silver	Shielded	M16-5	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	7 A	Metal
Amphenol Tuchel Industrial C09131H0071012U	Keyed	Solder Cup	Nickel	Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Strain Relief	60 V	100 °C	-40 °C	7	Silver	Shielded	M16-7	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	7 A	Metal
Amphenol Tuchel Industrial C09131H0142002U	Keyed	Solder Cup	Nickel	Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Strain Relief	250 V	100 °C	-40 °C	14	Gold	Shielded	M16-14	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	3 A	Metal
Amphenol Tuchel Industrial C09131H0041002U	Keyed	Solder Cup	Nickel	Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Strain Relief	60 V	100 °C	-40 °C	4	Silver	Shielded	M16-4	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	10 A	Metal
Amphenol Tuchel Industrial C09131H0121024U	Keyed	Solder Cup	Nickel	Zinc Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Backshell Coupling Nut Strain Relief		100 °C	-40 °C	12	Silver		M16-12	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K		Metal
Amphenol Tuchel Industrial C09131H0051024U	Keyed	Solder Cup	Nickel	Zinc Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Backshell Coupling Nut Strain Relief		100 °C	-40 °C	5	Silver		M16-5	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K		Metal
Amphenol Tuchel Industrial C09131H0061014U	Keyed	Solder Cup	Nickel	Zinc Die Cast	Silver	Male Pins Plug	Free Hanging (In-Line)	Backshell Coupling Nut Strain Relief		100 °C	-40 °C	6	Silver		M16-6	Threaded	Dust Tight Water Resistant Waterproof	IP68 IP69K		Metal
