BWR-5/250-D12-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

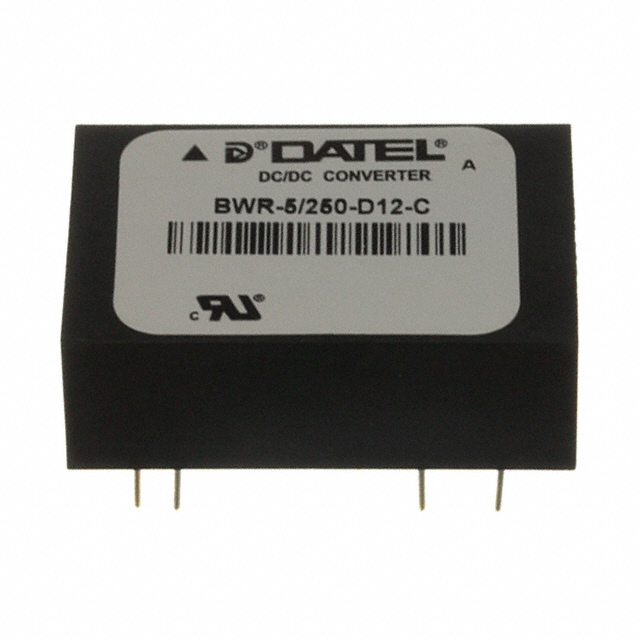

BWR-5/250-D12-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BWR-5/250-D12-C | BWR-5 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 250 mA | 1.5 - 250 A |
| Current - Output (Max) | 250 mA | 1.5 - 250 A |
| Efficiency | 77 % | 77 - 85 % |
| Features | - | OCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 75 ░C | 75 - 100 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Package / Case | 8-DIP Module | 6-DIP Module, 8-DIP Module, 7 Leads, 8-DIP Module |
| Power (Watts) | 3 W | 3 - 17 W |
| Size / Dimension [x] | 1.25 " | 1.25 - 2 in |
| Size / Dimension [x] | 31.8 mm | 31.8 - 50.8 mm |
| Size / Dimension [y] | 0.8 in | 0.8 - 25.4 mm |
| Size / Dimension [y] | 20.3 mm | 20.3 - 50.8 mm |
| Size / Dimension [z] | 0.45 " | 0.45 - 0.47 " |
| Size / Dimension [z] | 11.4 mm | 11.4 - 11.8 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 9 V | 9 - 36 V |
| Voltage - Isolation | 1000 V | 1.5 - 1000 kV |
| Voltage - Output 1 | 5 V | 5 V |
| Voltage - Output 2 | -5 V | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BWR-5 Series
DC DC CONVERTER +/-5V 15W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Number of Outputs | Voltage - Output 2 | Applications | Voltage - Isolation | Voltage - Input (Max) [Max] | Efficiency | Package / Case | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Mounting Type | Current - Output (Max) | Current - Output (Max) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BWR-5/1500-D48A-C | 100 °C | -40 °C | 36 V | 5 V | 2 | -5 V | ITE (Commercial) | 1.5 kV | 75 V | 85 % | 6-DIP Module | Isolated Module | 25.4 mm | 50.8 mm | 0.47 " | 11.8 mm | 25.4 mm | 2 in | 15 W | Through Hole | 1.5 A | 1.5 A | OCP, OVP |
Murata Power Solutions Inc. BWR-5/1500-D24A-C | 100 °C | -40 °C | 18 V | 5 V | 2 | -5 V | ITE (Commercial) | 1.5 kV | 36 V | 83 % | 6-DIP Module | Isolated Module | 25.4 mm | 50.8 mm | 0.47 " | 11.8 mm | 25.4 mm | 2 in | 15 W | Through Hole | 1.5 A | 1.5 A | OCP, OVP |
Murata Power Solutions Inc. BWR-5/1700-D12A-C | 100 °C | -40 °C | 9 V | 5 V | 2 | -5 V | ITE (Commercial) | 1000 V | 36 V | 83 % | 8-DIP Module, 7 Leads | Isolated Module | 50.8 mm | 50.8 mm | 0.45 " | 11.4 mm | 2 in | 2 in | 17 W | Through Hole | 1.7 A | 1.7 A | |
Murata Power Solutions Inc. BWR-5/250-D12-C | 75 ░C | -25 °C | 9 V | 5 V | 2 | -5 V | ITE (Commercial) | 1000 V | 36 V | 77 % | 8-DIP Module | Isolated Module | 20.3 mm | 31.8 mm | 0.45 " | 11.4 mm | 0.8 in | 1.25 " | 3 W | Through Hole | 250 mA | 250 mA |
Description
General part information
BWR-5 Series
Isolated Module DC DC Converter 2 Output 5V -5V 250mA, 250mA 9V - 36V Input
