1N4689

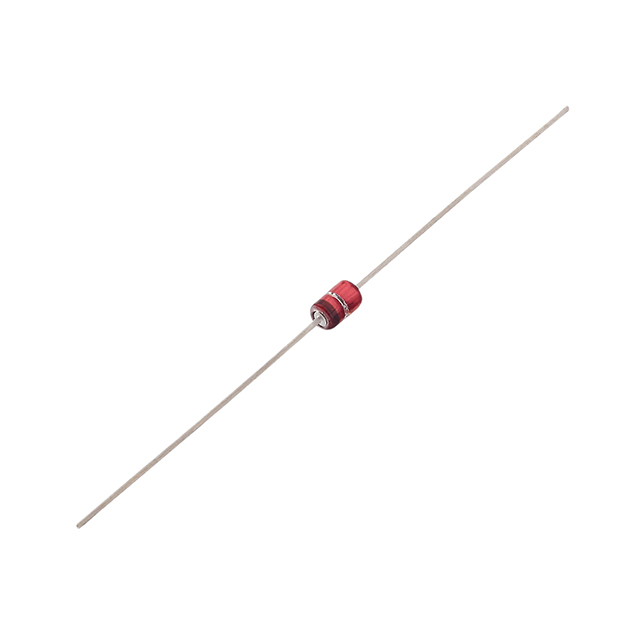

ActiveZENER DIODE SINGLE 2-PIN 5.1V, 5%, 500MW DO-35 BAG
Deep-Dive with AI
Search across all available documentation for this part.
1N4689
ActiveZENER DIODE SINGLE 2-PIN 5.1V, 5%, 500MW DO-35 BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N4689 |
|---|---|
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Axial, DO-204AA, DO-7 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | DO-7 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.15 | |
| 100 | $ 3.84 | |||
| Microchip Direct | N/A | 1 | $ 4.15 | |
| Newark | Each | 100 | $ 3.84 | |
| 500 | $ 3.70 | |||
1N4689-Zener-Diode Series
Zener Diode Single 2-Pin 5.1V, 5%, 500mW DO-35 Bag
| Part | Package / Case | Voltage - Zener (Nom) (Vz) | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Current - Reverse Leakage @ Vr | Power - Max [Max] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N4689 | Axial, DO-204AA, DO-7 | 5.1 V | -65 ░C | 347 °F | DO-7 | 1.1 V | Through Hole | 10 µA | 500 mW | 5 % |
Description
General part information
1N4689-Zener-Diode Series
The 1N4678-1 thru 1N4717-1 series of 0.5 watt Zener voltage regulators provides a selection from 1.8 to 43 volts in standard 5% tolerances as well as tighter tolerances. These axial leaded glass DO-35 Zeners are available with an internal metallurgical bond similar to military requirements for similar Zeners. Microchip also offers numerous other Zener products to meet higher and lower power applications.
