19101-03UL

Active

Grayhill Inc.

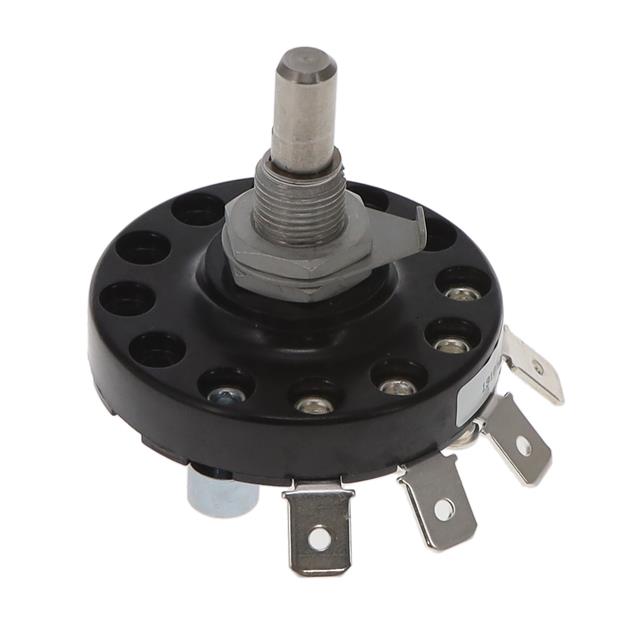

ROTARY SWITCH, 3 POSITION, 1 POLE, 30 °, 15 A, 120 V, 19 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

19101-03UL

Active

Grayhill Inc.

ROTARY SWITCH, 3 POSITION, 1 POLE, 30 °, 15 A, 120 V, 19 SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	19101-03UL	19101 Series

Actuator Length [x]	0.5 in	0.5 in
Actuator Type	Flatted	Flatted
Actuator Type [diameter]	6.35 mm	6.35 mm
Angle of Throw	30 °	30 °
Circuit per Deck	SP3T	SP8T, SP6T, SPDT, SP3T, SP7T
Circuit per Deck	-	SP11T
Contact Material	Silver Alloy	Silver Alloy
Contact Timing	Non-Shorting	Non-Shorting
Current Rating (Amps)	15A, 1A	15A, 1A
Depth Behind Panel [z]	24.13 mm	24.13 mm
Index Stops	Fixed	Fixed
Number of Decks [custom]	1	1
Number of Poles per Deck	1	1
Number of Positions	-	2 - 11
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	120 V	120 V
Voltage Rating - DC	120 V	120 V

19101 Series

SWITCH ROTARY 8POS 15A 120V

Part	Contact Material	Termination Style	Number of Decks [custom]	Index Stops	Voltage Rating - AC	Voltage Rating - DC	Number of Positions	Current Rating (Amps)	Depth Behind Panel [z]	Contact Timing	Angle of Throw	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Actuator Length [x]	Circuit per Deck	Circuit per Deck [custom]
Grayhill Inc. 19101-08UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	8	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP8T
Grayhill Inc. 19101-06UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	6	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP6T
Grayhill Inc. 19101-02UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	2	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SPDT
Grayhill Inc. 19101-03UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V		15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP3T
Grayhill Inc. 19101-07UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	7	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in	SP7T
Grayhill Inc. 19101-11UL	Silver Alloy	Quick Connect - 0.250" (6.3mm)	1	Fixed	120 V	120 V	11	15A, 1A	24.13 mm	Non-Shorting	30 °	1	6.35 mm	Flatted	0.5 in		SP11T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.59
		5	$ 63.40
		10	$ 59.32
		25	$ 54.50
		50	$ 50.98
		100	$ 48.20
Newark	Each	25	$ 69.82
		50	$ 68.91
		100	$ 66.74

Description

General part information

19101 Series

The 19 series Single Deck Rotary Switch has extremely rugged construction and virtually limitless configurations. It is available in single-pole, single deck 2 to 11-position plus common 30° indexing angle. It has non-shorting type contacts and a rivet provides the fixed stop on all switches. Minimum number of positions is 2 and maximum is 11. The rotational torque 12 to 36 ouch-inches on average for switches.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
