10127156-101LF

Obsolete

Amphenol ICC (FCI)

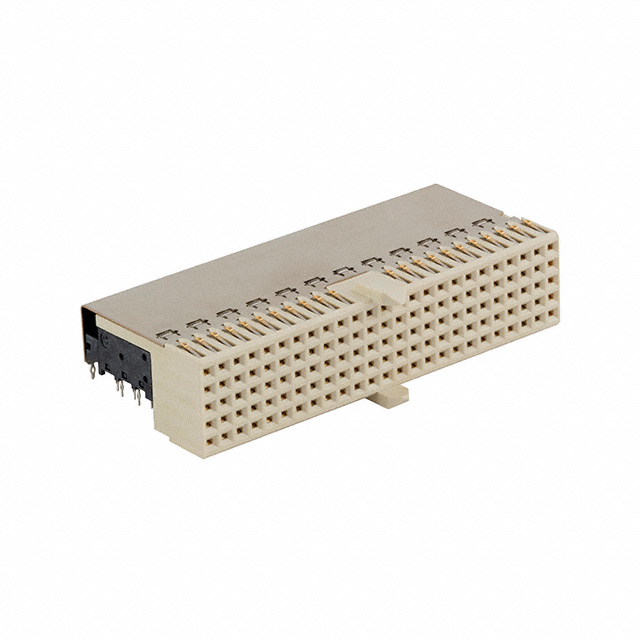

CONN RECEPT 147POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN RECEPT 147POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

Specification	10127156-101LF

Connector Style	AB 25
Connector Type	Receptacle, Female Sockets
Contact Finish	GXT™, Gold or Gold
Current Rating (Amps)	1.5 A
Features	Upper Shield
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	147
Number of Positions Loaded	All
Number of Rows	5 + 1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

Part	Voltage Rating	Contact Finish	Termination	Connector Type	Features	Pitch [x]	Pitch [x]	Number of Positions Loaded	Connector Style	Connector Usage	Number of Rows	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Number of Rows
Amphenol ICC (FCI) 10127156-102LF	750 VDC	Gold or Gold GXT™	Press-Fit	Receptacle Female Sockets	Shielded	0.079 in	2 mm	All	AB 25	Backplane	5	1.5 A	-55 °C	347 °F	Board Edge Right Angle Through Hole	125
Amphenol ICC (FCI) 10127156-101LF	750 Vrms	Gold or Gold GXT™	Press-Fit	Receptacle Female Sockets	Upper Shield	0.079 in	2 mm	All	AB 25			1.5 A	-55 °C	125 °C	Board Edge Right Angle Through Hole	147	5 + 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

147 (125 + 22 Ground) Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
