MX58024SFB
ActiveJAE Electronics

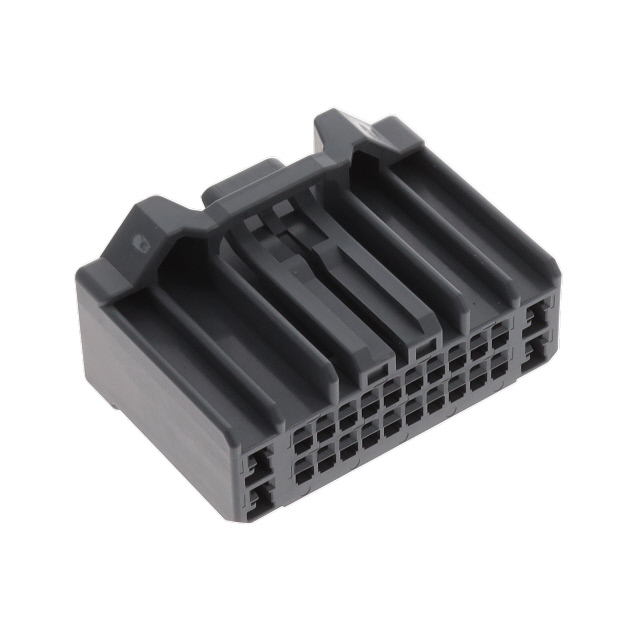

JAE MX58024SFB CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MX58024SFB
ActiveJAE Electronics
JAE MX58024SFB CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MX58024SFB |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch [x] | 0.087 in |
| Pitch [x] | 2.2 mm |
| Row Spacing | 0.157 in |
| Row Spacing | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.74 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.59 | |||
| 40 | $ 0.56 | |||
| 80 | $ 0.53 | |||
| 230 | $ 0.49 | |||
| 616 | $ 0.46 | |||
| 1232 | $ 0.38 | |||
| 2464 | $ 0.35 | |||
Description
General part information
MX58024S Series
24 Rectangular Connectors - Housings Receptacle Gray 0.087" (2.20mm)
Documents
Technical documentation and resources
