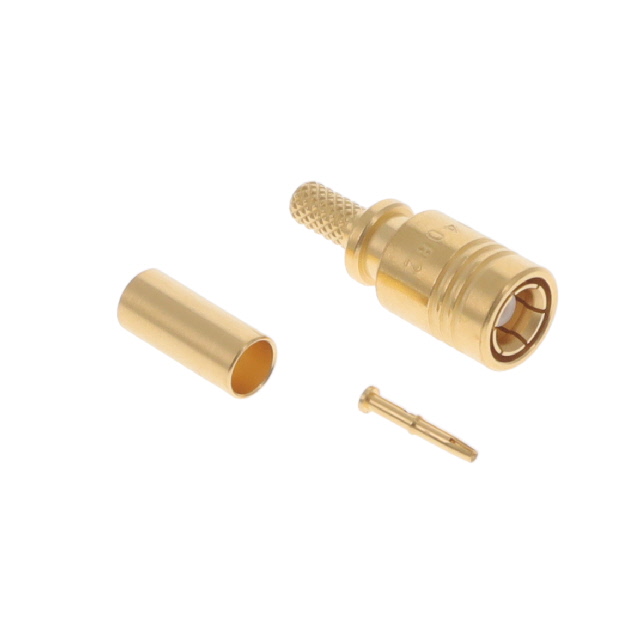

R114082000W

Active

Radiall USA, Inc.

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R114082000W

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316, 187, 179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Body Material	Frequency - Max [Max]	Center Contact Plating	Voltage Rating	Cable Group	Connector Style	Dielectric Material	Connector Type	Shield Termination	Housing Color	Fastening Type	Impedance	Number of Ports	Mating Cycles	Contact Termination	Center Contact Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Radiall USA, Inc. R114082000	Brass	4 GHz	Gold	335 V	179 316 RG-174	SMB	Polytetrafluoroethylene (PTFE)	Female Socket Plug	Crimp	Gold	Snap-On	50 Ohms	1	500	Crimp	Beryllium Copper	Gold	-65 ░C	165 °C	Free Hanging (In-Line)
Radiall USA, Inc. R114082000W	Brass	4 GHz	Gold	335 V	179 187 188 316 RG-174	SMB	Polytetrafluoroethylene (PTFE)	Female Socket Plug	Crimp	Gold	Snap-On	50 Ohms	1	500	Crimp	Beryllium Copper	Gold	-65 ░C	165 °C	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
