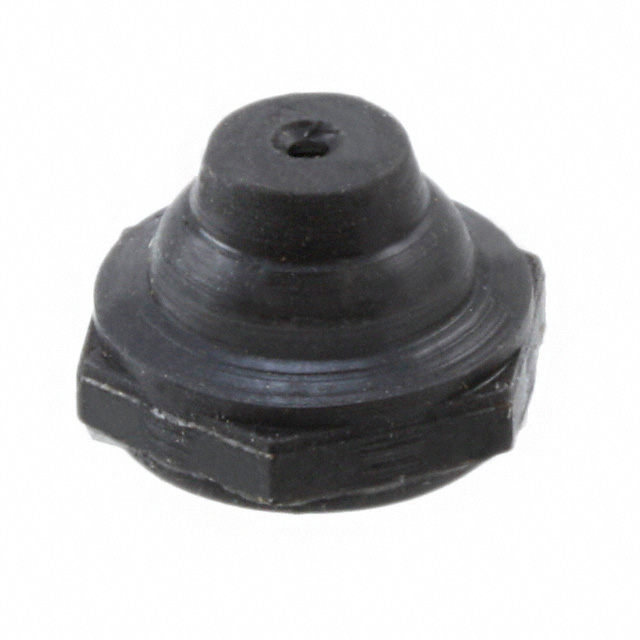

1132/33 M12-1 BLACK

Active

APM HEXSEAL

TOGGLE HALF BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE HALF BOOT BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1132/33 M12-1 BLACK	1132 Series

Actuator Diameter [diameter]	0.24 in	0.18 - 0.24 in
Actuator Diameter [diameter]	6.09 mm	4.57 - 6.09 mm
Color	Black	Black
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-62 °C	-62 °C
Size / Dimension [z]	11.1 mm	5.7 - 11.1 mm
Size / Dimension [z]	0.437 in	0.225 - 0.437 in
Thread Size	M12x1	M12x1, M5x0.5
Type	Toggle, Half Boot	Toggle, Half Boot

TOGGLE HALF BOOT BLACK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size / Dimension [z]	Size / Dimension [z]	For Use With/Related Products	Color	Mounting Feature	Thread Size	Material	Ingress Protection	Type
APM HEXSEAL 1132/33 M12-1 BLACK	-62 °C	204 °C	0.24 in	6.09 mm	11.1 mm	0.437 in	Multiple Series	Black	Front of Panel	M12x1	Silicone Rubber	IP66/IP68	Half Boot, Toggle
APM HEXSEAL 1132/17 M5-5 2202	-62 °C	204 °C	0.18 in	4.57 mm	5.7 mm	0.225 "	Multiple Series	Black	Front of Panel	M5x0.5	Silicone Rubber	IP66/IP68	Half Boot, Toggle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOGGLE HALF BOOT BLACK
