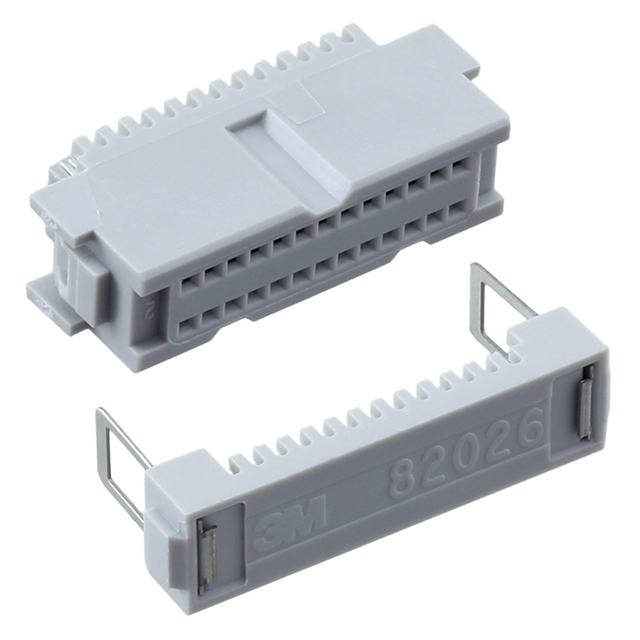

82026-6000

Obsolete

3M (TC)

CONN RCPT 26POS IDC 30AWG GOLD

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 26POS IDC 30AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Row Spacing [x]	Row Spacing	Wire Gauge	Mounting Type	Cable Termination	Pitch [x]	Pitch [x]	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Contact Type	Features	Number of Rows	Contact Finish	Color
3M (TC) 82026-6000-RB	0.1 in	2.54 mm	30 AWG	Free Hanging (In-Line)	IDC	0.05 in	1.27 mm	Ribbon Cable	0.76 Ám	30 Áin	Receptacle	26	Female Socket	Feed Through	2	Gold	Gray
3M (TC) 82026-6000	0.1 in	2.54 mm	30 AWG	Free Hanging (In-Line)	IDC	0.05 in	1.27 mm	Ribbon Cable	0.76 Ám	30 Áin	Receptacle	26	Female Socket	Feed Through	2	Gold	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Rectangular Receptacle Connector IDC Gold 30 AWG
