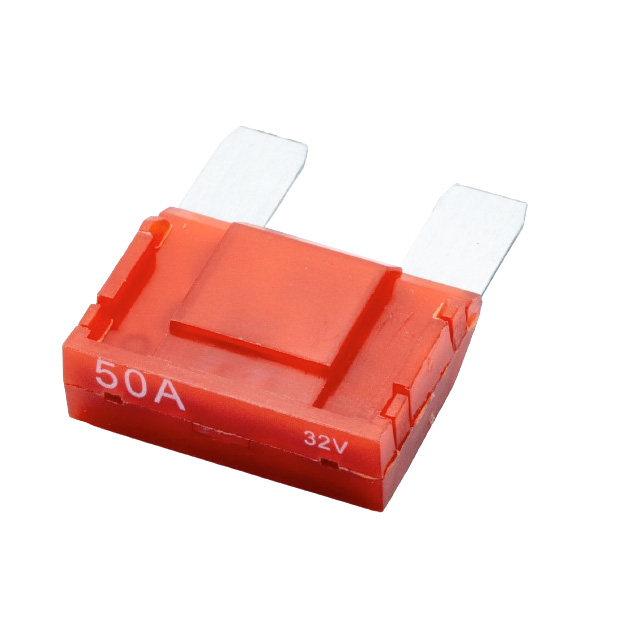

ANX-50A

Active

OptiFuse

FUSE AUTO 50A 32VDC BLADE MAX

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 50A 32VDC BLADE MAX

Technical Specifications

Parameters and characteristics for this part

Specification	ANX-50A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Red
Current Rating (Amps)	50 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Max
Response Time	Fast Blow
Size / Dimension [x]	1.142 inches
Size / Dimension [x]	29 mm
Size / Dimension [y]	0.35 "
Size / Dimension [y]	8.9 mm
Size / Dimension [z]	0.85 "
Size / Dimension [z]	21.6 mm
Voltage Rating - DC	32 V

FUSE AUTO 50A 32VDC BLADE MAX

Part	Fuse Type	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Response Time	Voltage Rating - DC	Approval Agency	Mounting Type	Package / Case	Breaking Capacity @ Rated Voltage
OptiFuse ANX-50A	Automotive	50 A	0.85 "	21.6 mm	0.35 "	1.142 inches	29 mm	8.9 mm	Red	Fast Blow	32 V	ISO, SAE	Requires Holder	Blade, Max	1 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.87

General part information

50 A AC 32 V DC Fuse Automotive Requires Holder Blade, Max
