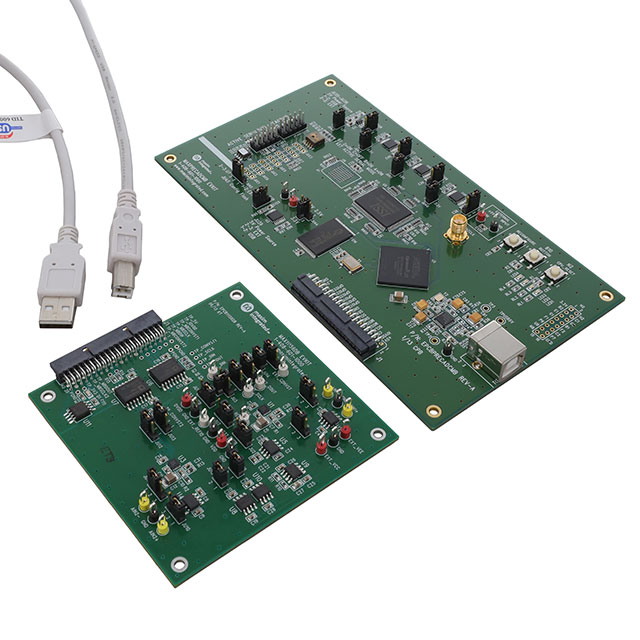

MAX11156EVSYS#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL SYSTEM FOR MAX11156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11156EVSYS#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL SYSTEM FOR MAX11156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11156EVSYS# | MAX11156 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | S/H-ADC |
| Data Interface | QSPI™, SPI™, Serial, MICROWIRE™, DSP | DSP, SPI, QSPI™, SPI™, Serial, MICROWIRE™ |
| Input Range [Max] | 5 V | 5 V |
| Input Range [Min] | -5 V | -5 V |
| Input Type | - | Pseudo-Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 2 | 1 - 2 |
| Number of Inputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 12-WFDFN Exposed Pad |
| Power (Typ) @ Conditions | 38.5 mW | 38.5 mW |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External, Internal |
| Sampling Rate (Per Second) | 500k | 500k |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 12-TDFN (3x3) |
| Utilized IC / Part | MAX11156 | MAX11156 |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 845.48 | |
MAX11156 Series
IC ADC 18BIT SAR 12TDFN
| Part | Configuration | Mounting Type | Package / Case | Input Type | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Voltage - Supply, Digital | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Reference Type | Voltage - Supply, Analog | Number of Inputs | Data Interface | Sampling Rate (Per Second) | Power (Typ) @ Conditions | Input Range [Min] | Input Range [Max] | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11156ETC+T | S/H-ADC | Surface Mount | 12-WFDFN Exposed Pad | Pseudo-Differential | 1:1 | 1 | SAR | 5 V | 85 °C | -40 °C | 12-TDFN (3x3) | External, Internal | 5 V | 1 | DSP, SPI | 500k | |||||
Analog Devices Inc./Maxim Integrated MAX11156ETC+ | S/H-ADC | Surface Mount | 12-WFDFN Exposed Pad | Pseudo-Differential | 1:1 | 1 | SAR | 5 V | 85 °C | -40 °C | 12-TDFN (3x3) | External, Internal | 5 V | 1 | DSP, SPI | 500k | |||||
Analog Devices Inc./Maxim Integrated MAX11156EVSYS# | 2 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 500k | 38.5 mW | -5 V | 5 V | Board(s) | MAX11156 |
Description
General part information
MAX11156 Series
MAX11156 - 18 Bit 500k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
