MMC5603NJ

Active

Memsic Inc.

3-AXIS AMR MAGNETIC SENSOR

Search across all available documentation for this part.

Active

Memsic Inc.

3-AXIS AMR MAGNETIC SENSOR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MMC5603NJ	MMC5603 Series

Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth	1 kHz	1 kHz
Current - Supply (Max) [Max]	4 mA	4 mA
Features	Temperature Compensated	Temperature Compensated
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I3C, I2C	I3C, I2C
Package / Case	4-UFBGA, WLBGA	4-UFBGA, WLBGA
Resolution	20 b	20 b
Sensing Range	3 mT	3 mT
Sensor Type	-	Magnetic, AMR (Anisotropic Magnetoresistive)
Supplied Contents	-	Board(s)
Supplier Device Package	4-WLP	4-WLP
Supplier Device Package [x]	0.82	0.82
Supplier Device Package [y]	0.82	0.82
Technology	Magnetoresistive	Magnetoresistive
Utilized IC / Part	-	MMC5603
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.62 V	1.62 V

DEV BOARD FOR MMC5603NJ

Part	Supplied Contents	Sensor Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Sensing Range	Package / Case	Current - Supply (Max) [Max]	Output Type	Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]	Resolution	Mounting Type	Technology	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Features	Axis [z]	Axis [y]	Axis [x]
Memsic Inc. MMC5603NJ-B	Board(s)	Magnetic, AMR (Anisotropic Magnetoresistive)	3.6 V	1.62 V	MMC5603	3 mT
Memsic Inc. MMC5603NJ			3.6 V	1.62 V		3 mT	4-UFBGA, WLBGA	4 mA	I2C, I3C	1 kHz	85 °C	-40 °C	20 b	Surface Mount	Magnetoresistive	0.82	4-WLP	0.82	Temperature Compensated	Z	Y	X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

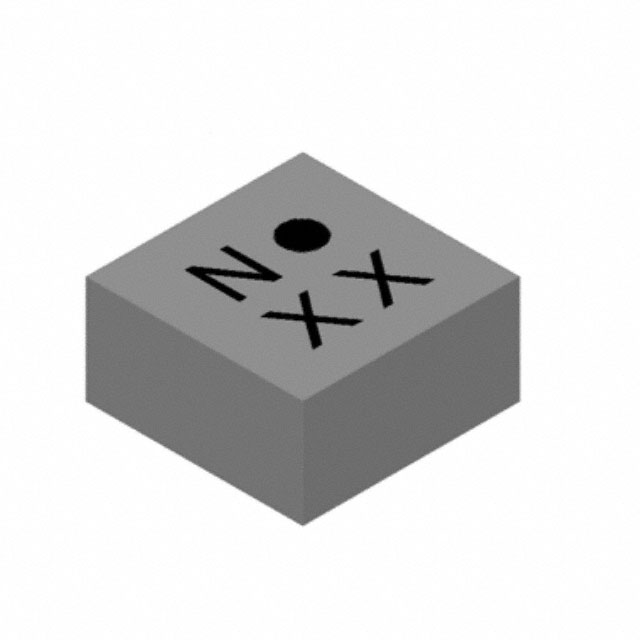

Magnetoresistive Sensor X, Y, Z Axis 4-WLP (0.82x0.82)
