CONN PLUG FMALE 5P SILV SLDR CUP

97-3106A14S-5S-417

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 5P SILV SLDR CUP

Description Specifications Series Pricing CAD Documents

Description

General part information

97-3106A14 Series

5 Position Circular Connector Plug, Female Sockets Solder Cup

Technical Specifications

Parameters and characteristics for this part

Specification	97-3106A14S-5S-417

Applications	Automotive, Industrial
Backshell Material	Aluminum Alloy
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Insert Material	Diallyl Phthalate, DAP
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Olive Drab Chromate over Cadmium
Primary Material	Metal
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-5
Shielding	Unshielded
Termination	Solder Cup

97-3106A14 Series

Part	Termination	Shell Size - Insert	Shielding	Primary Material	Features	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Connector Type	Fastening Type	Contact Finish - Mating	Shell Finish	Mounting Type	Backshell Material	Plating	Applications	Number of Positions	Orientation	Contact Material	Insert Material	Color

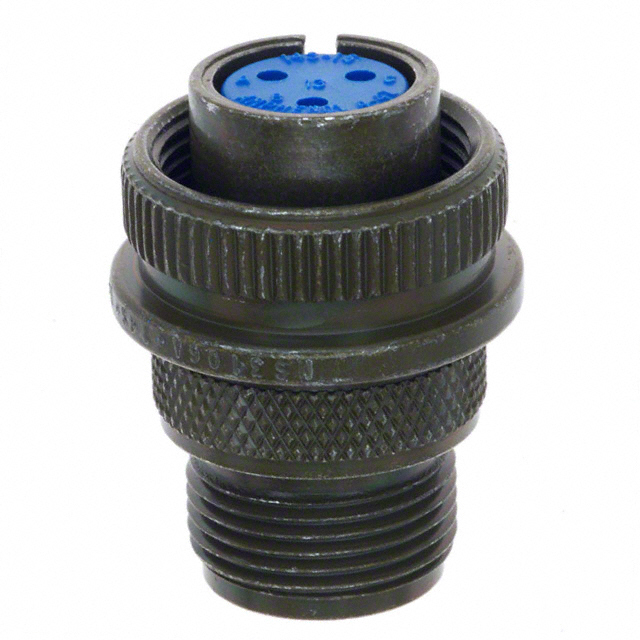

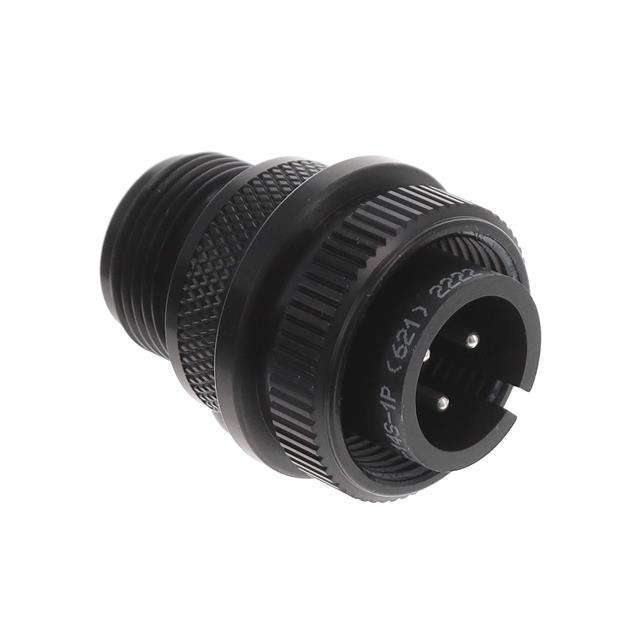

Amphenol Aerospace Operations 97-3106A-14S-1S	Solder Cup	14S-1	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Female Sockets Plug	Threaded	Silver	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	Automotive Industrial	3	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Olive Drab
Amphenol Aerospace Operations 97-3106A-14S-6P(946)	Solder Cup	14S-6	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Male Pins Plug	Threaded	Silver	Black Zinc Alloy	Free Hanging (In-Line)	Aluminum Alloy	Black Zinc Alloy	Automotive Industrial	6	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Black
Amphenol Aerospace Operations 97-3106A-14S-1P(621)	Solder Cup	14S-1	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Male Pins Plug	Threaded	Silver	Black Zinc Alloy	Free Hanging (In-Line)	Aluminum Alloy	Black Zinc Alloy	Automotive Industrial	3	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Black
Amphenol Aerospace Operations 97-3106A-14S-5P	Solder Cup	14S-5	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Male Pins Plug	Threaded	Silver	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	Automotive Industrial	5	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Olive Drab
Amphenol Aerospace Operations 97-3106A14S-2S-914	Solder Cup	14S-2	Unshielded	Metal	Backshell Cable Clamp Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Female Sockets Plug	Threaded	Silver	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	Automotive Industrial	4	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Olive Drab
Amphenol Aerospace Operations 97-3106A14S-5S-417	Solder Cup	14S-5	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Female Sockets Plug	Threaded	Silver	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	Automotive Industrial	5	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Olive Drab
Amphenol Aerospace Operations 97-3106A-14S-1P	Solder Cup	14S-1	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Male Pins Plug	Threaded	Silver	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	Automotive Industrial	3	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Olive Drab
Amphenol Aerospace Operations 97-3106A-14S-2P	Solder Cup	14S-2	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Male Pins Plug	Threaded	Silver	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	Automotive Industrial	4	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Olive Drab
Amphenol Aerospace Operations 97-3106A14S-7P-947	Solder Cup	14S-7	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Male Pins Plug	Threaded	Silver	Electroless Nickel	Free Hanging (In-Line)	Aluminum Alloy	Electroless Nickel	Automotive Industrial	3	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Silver
Amphenol Aerospace Operations 97-3106A-14S-2S(946)	Solder Cup	14S-2	Unshielded	Metal	Backshell Coupling Nut	125 °C	-55 °C	Aluminum Alloy	Female Sockets Plug	Threaded	Silver	Black Zinc Alloy	Free Hanging (In-Line)	Aluminum Alloy	Black Zinc Alloy	Automotive Industrial	4	N (Normal)	Copper Alloy	DAP Diallyl Phthalate	Black
