Q-2V03I00031.5M

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 4.9'

Technical Specifications

Parameters and characteristics for this part

Part	2nd Contact Gender	1st Connector	Color	2nd Connector	1st Contact Gender	Connector Impedance	Length	Length	Style	Frequency - Max [Max]	2nd Connector Mounting Type	Features	Overall Impedance	Cable Type	Cable Impedance	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-2V03I00050.5M	Male	SMA Jack	Copper	SMB Jack Right Angle	Female	50 Ohms	50 cm	19.69 "	SMA to SMB	3 GHz	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-2V03I0005072I	Male	SMA Jack	Copper	SMB Jack Right Angle	Female	50 Ohms	1.8 m	72 in	SMA to SMB	3 GHz	Free Hanging (In-Line)	Shielded	50 Ohms	RG-316	50 Ohms	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-2V03I00032.5M	Male	SMA Jack	Black	SMB Jack Right Angle	Female	50 Ohms	2.5 m	98.4 in	SMA to SMB	1 GHz	Free Hanging (In-Line)	Shielded	50 Ohms	RG-174	50 Ohms	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-2V03I00031.5M	Male	SMA Jack	Black	SMB Jack Right Angle	Female	50 Ohms	1.5 m	59.1 in	SMA to SMB	1 GHz	Free Hanging (In-Line)	Shielded	50 Ohms	RG-174	50 Ohms	Free Hanging (In-Line)	4.9 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

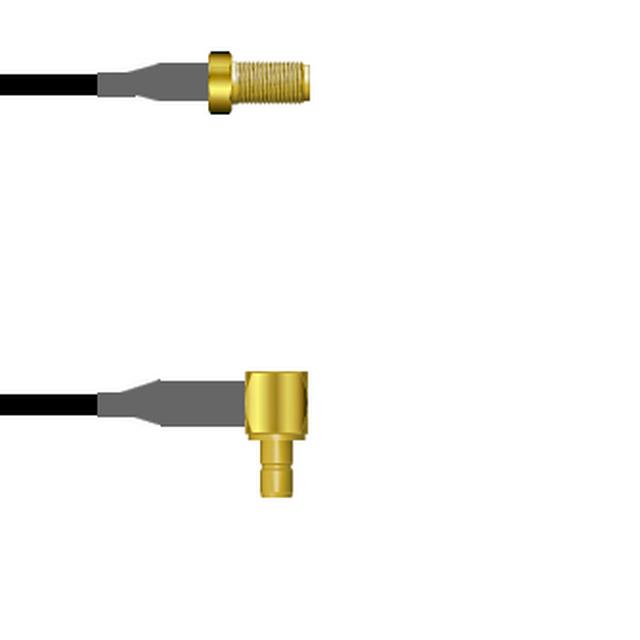

Cable Assembly Coaxial SMA to SMB RG-174 59.1" (1.5m) 4.9'

Technical documentation and resources

No documents available
