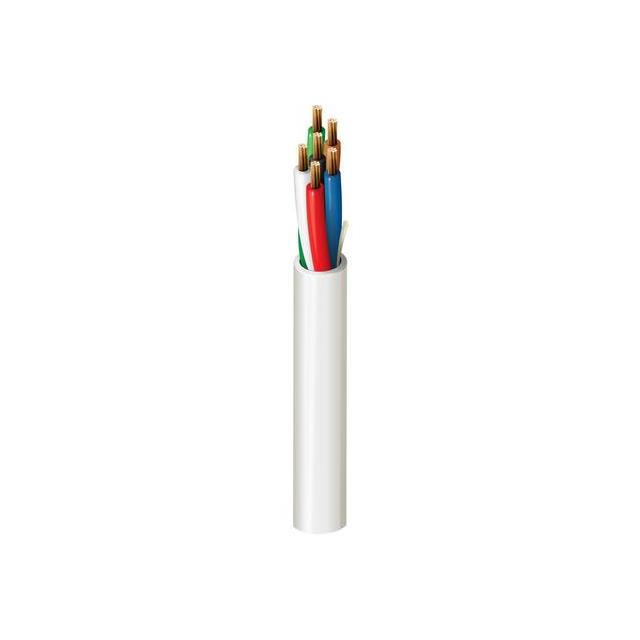

5504UE 009U1000

Active

Belden Inc.

CABLE 6COND 22AWG WHITE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 22AWG WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	5504UE 009U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Ratings	UL Style CMR
Usage	Sound, Security
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Ratings	Conductor Insulation	Length	Length	Cable Type	Voltage	Number of Conductors	Usage	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 5504UE 0081000	Copper Bare	UL Style CMR	Polypropylene (PP)	1000 ft	304.8 m	Multi-Conductor	300 V	6	Security Sound	Gray	Poly-Vinyl Chloride (PVC) Riser	0.432 mm	0.017 in	Rip Cord	7	30 AWG	22 AWG	4.27 mm	0.168 in
Belden Inc. 5504UE 009U1000	Copper Bare	UL Style CMR	Polypropylene (PP)	1000 ft	304.8 m	Multi-Conductor	300 V	6	Security Sound		Poly-Vinyl Chloride (PVC) Riser	0.432 mm	0.017 in	Rip Cord	7	30 AWG	22 AWG	4.27 mm	0.168 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.29

General part information

6 Conductor Multi-Conductor Cable White 22 AWG 1000.0' (304.8m)
