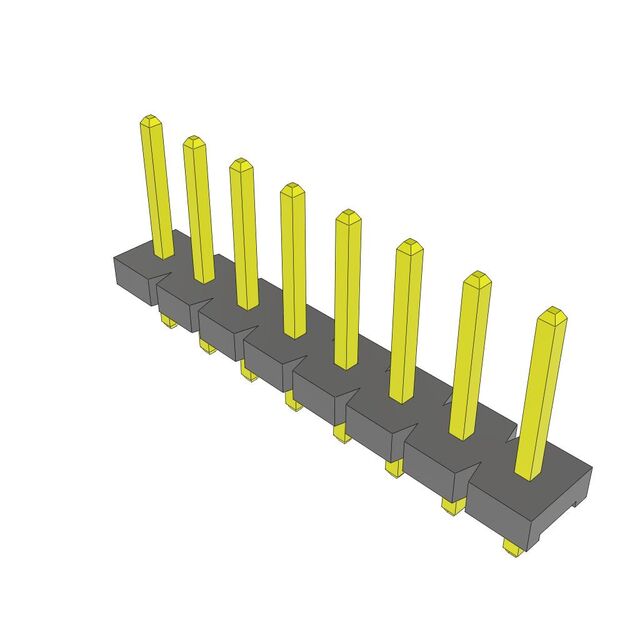

FWS-08-01-T-S

Active

Samtec Inc.

CONN HEADER VERT 8POS 5.08MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 8POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Post	Contact Type	Contact Material	Insulation Color	Number of Positions Loaded	Connector Type	Number of Rows	Insulation Material	Voltage Rating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Shape	Termination	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Type	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FWS-08-04-T-S	Tin	Male Pin	Phosphor Bronze	Black	All	Header	1	Polyester Glass Filled	500 VAC	0.161 in	4.09 mm	11.4 A	Square	Solder	0.1 in	2.54 mm	5.08 mm	0.2 in	105 ░C	-55 °C	Push-Pull	Through Hole	0.769 "	19.53 mm	8	0.83 in	21.08 mm	Unshrouded
Samtec Inc. FWS-08-04-T-S-RA	Tin	Male Pin	Phosphor Bronze	Black	All	Header	1	Polyester Glass Filled	500 VAC		3.96 mm	11.4 A	Square	Solder	0.1 in	2.54 mm	5.08 mm	0.2 in	105 ░C	-55 °C	Push-Pull	Through Hole Right Angle			8			Unshrouded	0.156 in	13.82 mm	0.544 in
Samtec Inc. FWS-08-01-T-S	Tin	Male Pin	Phosphor Bronze	Black	All	Header	1	Polyester Glass Filled	500 VAC		4.57 mm	11.4 A	Square	Solder	0.1 in	2.54 mm	5.08 mm	0.2 in	105 ░C	-55 °C	Push-Pull	Through Hole	0.75 in	19.05 mm	8	0.47 in	11.94 mm	Unshrouded	0.18 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.79
