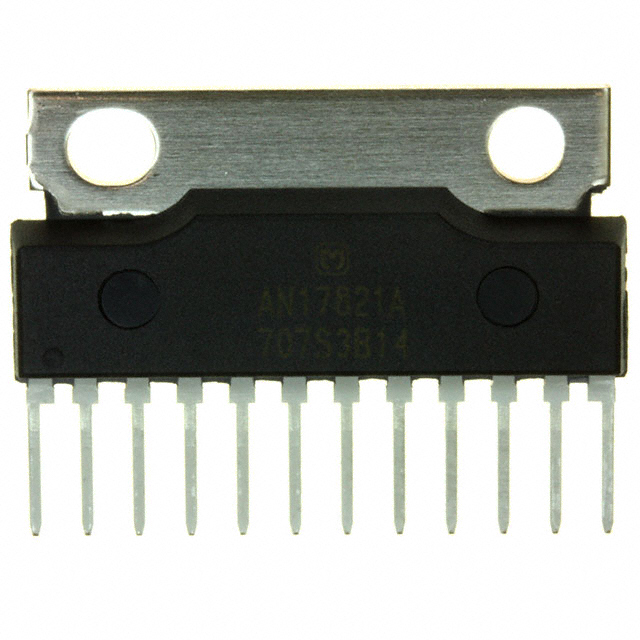

AN17821A

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STEREO 5W 12SIL

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STEREO 5W 12SIL

Technical Specifications

Parameters and characteristics for this part

Specification	AN17821A

Features	Volume Control, Standby
Max Output Power x Channels @ Load	5 W
Max Output Power x Channels @ Load [x]	2
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	2-Channel (Stereo)
Package / Case	12-SIP + Tab
Supplier Device Package	12-SIL
Type	Class AB
Voltage - Supply [Max]	13.5 V
Voltage - Supply [Min]	3.5 V

Part	Type	Features	Package / Case	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Panasonic Industrial Automation Sales AN17821A	Class AB	Standby Volume Control	12-SIP + Tab	2-Channel (Stereo)	12-SIL	70 °C	-25 °C	5 W	2	Through Hole	13.5 V	3.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 12-SIL
