H3KKH-4018G
ActiveAssmann WSW Components
IDC CBL - HHPK40H/AE40G/HHPK40H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H3KKH-4018G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Plug to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Polarizing Key |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.28 | |
| 10 | $ 7.45 | |||
| 25 | $ 7.02 | |||
| 50 | $ 6.84 | |||
| 100 | $ 6.66 | |||
| 250 | $ 5.94 | |||
| 500 | $ 5.58 | |||
| 1000 | $ 4.93 | |||
Description
General part information
H3KKH-40 Series

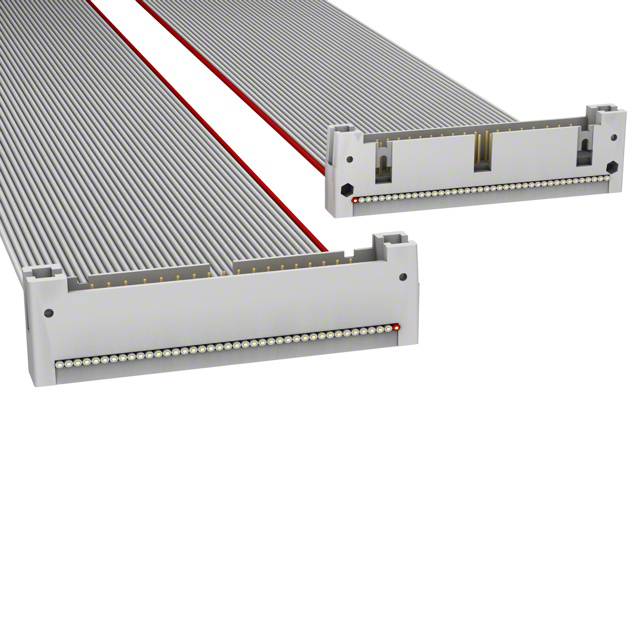

40 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)
