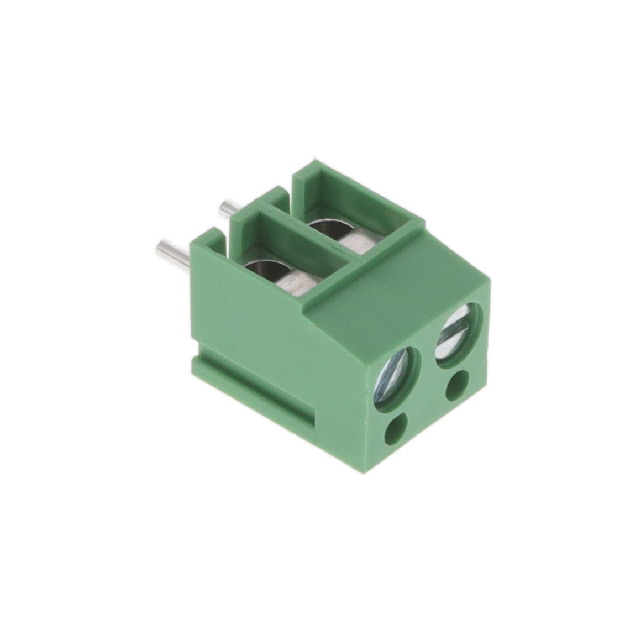

EBAA-02-C
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Search across all available documentation for this part.
EBAA-02-C
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBAA-02-C |
|---|---|
| Color | Green |
| Contact Material - Plating | Tin |
| Current | 16 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 2 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.35 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 5000 | $ 0.12 | |||
Description
General part information
EBAA Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
