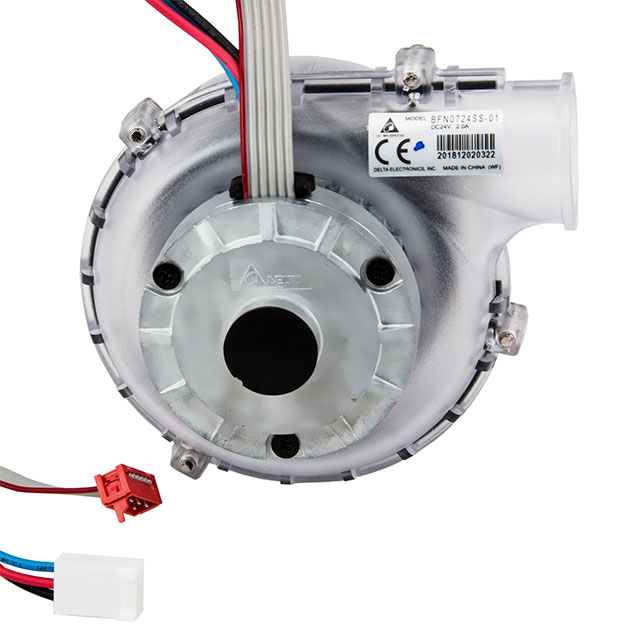

BFN0724SS-01

Active

Delta Electronics

FAN BLOWER 57.5MM 24VDC

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 57.5MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	BFN0724SS-01

Air Flow	0.507 mł/min
Air Flow	18.1 CFM
Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	1.5 A
Fan Type	Blower
Lifetime @ Temp.	15000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38 dB(A)
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	36 W
RPM	17300 RPM
Static Pressure	4897.1 Pa
Static Pressure	19.66 in H2O
Termination	6 Position Rectangular Connector, 3 Position Rectangular Connector
Voltage - Rated	24 VDC
Weight	0.508 lb
Weight	230.42 g
Width [x]	57.5 mm

Part	Fan Type	Lifetime @ Temp.	Material - Blade	RPM	Static Pressure	Static Pressure	Material - Frame	Air Flow	Air Flow	Voltage - Rated	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Noise	Termination	Width [x]	Approval Agency	Weight	Weight	Bearing Type
Delta Electronics BFN0724SS-01	Blower	15000 Hrs	Plastic	17300 RPM	4897.1 Pa	19.66 in H2O	Plastic	0.507 mł/min	18.1 CFM	24 VDC	36 W	-10 °C	40 °C	-10 °C	40 °C	1.5 A	38 dB(A)	3 Position Rectangular Connector 6 Position Rectangular Connector	57.5 mm	CE	0.508 lb	230.42 g	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Ball 18.1 CFM (0.507m³/min) 3 Position Rectangular Connector and 6 Position Rectangular Connector
