C10585_NIS83-MX-7-W

Active

LEDIL

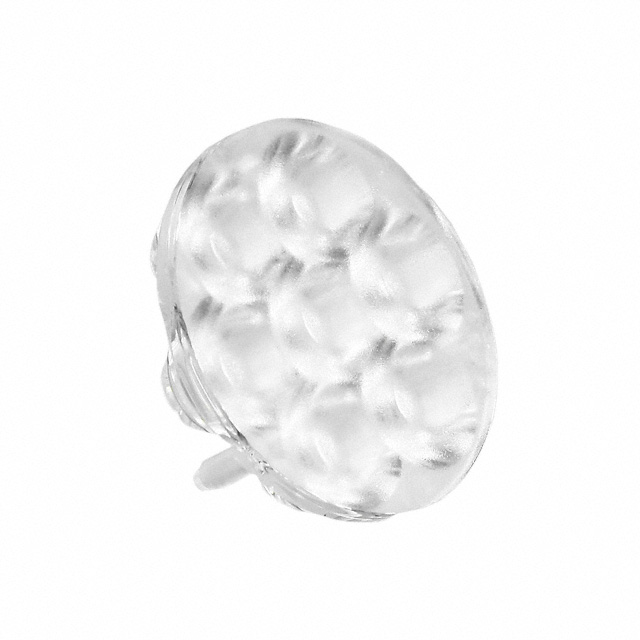

LED LENS, LENS WITHOUT HOLDER, WIDE, 38 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Search across all available documentation for this part.

Active

LEDIL

LED LENS, LENS WITHOUT HOLDER, WIDE, 38 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Technical Specifications

Parameters and characteristics for this part

Specification	C10585_NIS83-MX-7-W

Color	Clear
For Use With/Related Manufacturer	Cree, OPTGAN, Nichia
Lens Size [diameter]	38 mm
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Adhesive
Number of LEDs	7
Optical Pattern	Wide
Type	Lens with Integrated Mount
Viewing Angle [Max]	38 °
Viewing Angle [Min]	36 °

LED LENS, LENS WITHOUT HOLDER, WIDE, 38 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Part	Optical Pattern	Mounting Type	Material	Lens Size [diameter]	Color	Type	Viewing Angle [Max]	Viewing Angle [Min]	For Use With/Related Manufacturer	Number of LEDs	Lens Transparency
LEDIL C10585_NIS83-MX-7-W	Wide	Adhesive	Acrylic	38 mm	Clear	Lens with Integrated Mount	38 °	36 °	Cree, Nichia, OPTGAN	7	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	32	$ 3.67
Newark	Each	1	$ 4.31

General part information

Lens with Integrated Mount Clear 36° ~ 38° Wide Adhesive
