A9BAG-1606F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFF16G/AF16/AFE16T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A9BAG-1606F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFF16G/AF16/AFE16T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9BAG-1606F | A9BAG Series |
|---|---|---|
| Contact Termination | Receptacle to Solder Tab | Receptacle to Solder Tab |
| Length | 152.4 mm | 76.2 - 203.2 mm |
| Length | 6 in | 6 - 8 in |
| Length | - | 3 - 5 in |
| Length | - | 101.6 - 127 mm |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 2 - 20 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.88 | |
| 10 | $ 9.84 | |||
| 25 | $ 9.13 | |||
| 50 | $ 8.63 | |||
| 100 | $ 8.16 | |||
| 250 | $ 7.58 | |||
| 500 | $ 7.16 | |||
| 1000 | $ 6.78 | |||
A9BAG Series
FLEX CABLE - AFF18G/AF18/AFE18T
...
| Part | Contact Termination | Length [x] | Length | Pitch [x] | Pitch [x] | Number of Positions | Length | Number of Positions | Length [x] |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9BAG-1803F | Receptacle to Solder Tab | 3 in | 76.2 mm | 2.54 mm | 0.1 in | 18 | |||
TE Connectivity AMP Connectors A9BAG-0208F | Receptacle to Solder Tab | 203.2 mm | 2.54 mm | 0.1 in | 2 | 8 in | |||
TE Connectivity AMP Connectors A9BAG-1606F | Receptacle to Solder Tab | 152.4 mm | 2.54 mm | 0.1 in | 6 in | 16 | |||
TE Connectivity AMP Connectors A9BAG-2005F | Receptacle to Solder Tab | 5 in | 2.54 mm | 0.1 in | 20 | 127 mm | |||
TE Connectivity AMP Connectors A9BAG-1102F | Receptacle to Solder Tab | 2.54 mm | 0.1 in | 11 | |||||
TE Connectivity AMP Connectors A9BAG-0506F | Receptacle to Solder Tab | 152.4 mm | 2.54 mm | 0.1 in | 6 in | ||||
TE Connectivity AMP Connectors A9BAG-0805F | Receptacle to Solder Tab | 5 in | 2.54 mm | 0.1 in | 8 | 127 mm | |||
TE Connectivity AMP Connectors A9BAG-0808F | Receptacle to Solder Tab | 203.2 mm | 2.54 mm | 0.1 in | 8 | 8 in | |||
TE Connectivity AMP Connectors A9BAG-1004F | Receptacle to Solder Tab | 4 " | 2.54 mm | 0.1 in | 10 | 101.6 mm | |||
TE Connectivity AMP Connectors A9BAG-0602F | Receptacle to Solder Tab | 2.54 mm | 0.1 in | 6 |
Description
General part information
A9BAG Series

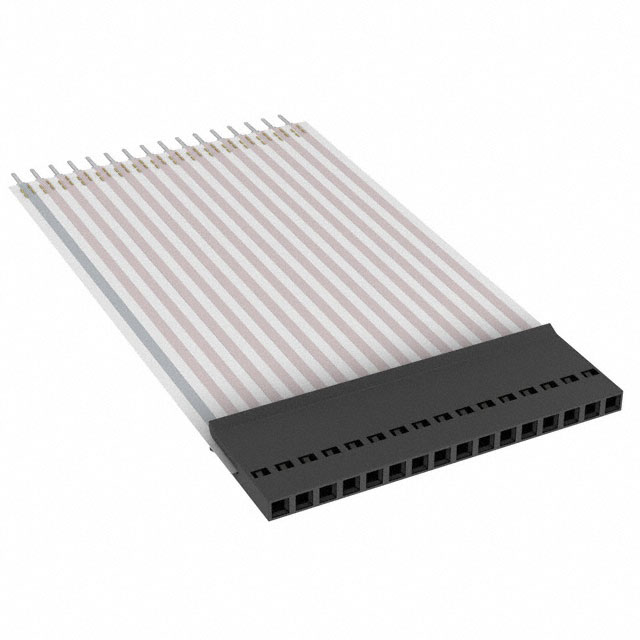

16 Position Flat Flex Cable Assembly Receptacle to Solder Tab 6.00" (152.40mm)
