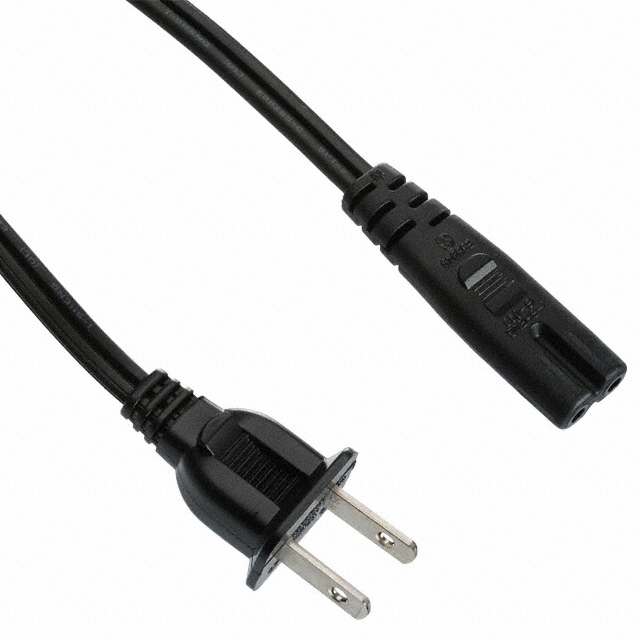

AK500/U-3
ActiveAssmann WSW Components
CORD 18AWG NEMA 1-15P - C7 6.56'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AK500/U-3
ActiveAssmann WSW Components
CORD 18AWG NEMA 1-15P - C7 6.56'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AK500/U-3 |
|---|---|
| 1st Connector | NEMA 1-15P |
| 2nd Connector | IEC 320-C7 |
| Approval Agency Marking | UL |
| Approved Countries | United States |
| Color | Black |
| Cord Type | SPT-2 |
| Current Rating (Amps) | 7 A |
| Length [x] | 2 m |
| Length [x] | 6.56 ft |
| Number of Conductors | 2 |
| Operating Temperature | 105 C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VDC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.61 | |
| 10 | $ 4.29 | |||
| 25 | $ 3.87 | |||
| 50 | $ 3.58 | |||
Description
General part information
AK500/U Series
6.56' (2.00m) Power Cord Black NEMA 1-15P To IEC 320-C7 SPT-2
