HGG.0B.309.CLLP

Active

LEMO

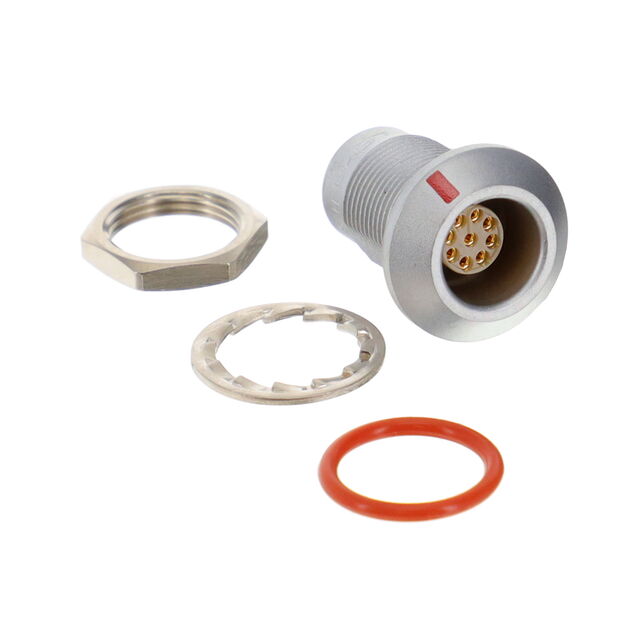

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HGG.0B.309.CLLP

Active

LEMO

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.19

Description

General part information

HGG.0B Series

9 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HGG.0B.309.CLLP	HGG.0B Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	2 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Vacuumtight, Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	9	2 - 9
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	309	302 - 309
Shielding	Shielded	Shielded
Termination	-	Solder

HGG.0B Series

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Ingress Protection	Primary Material	Shell Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Finish	Contact Material	Features	Connector Type	Contact Finish - Mating	Insert Material	Current Rating (Amps)	Shielding	Color	Mounting Feature	Material Flammability Rating	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Mounting Type
LEMO HGG.0B.302.CLLPV	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	10 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	302	100 °C	-20 C	2
LEMO HGG.0B.307.CLLP	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	2.5 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	307	100 °C	-20 C	7
LEMO HGG.0B.309.CLLP	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	2 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	309	100 °C	-20 C	9
LEMO HGG.0B.306.CLNPV	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	2.5 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	306	100 °C	-20 C	6	Solder	Panel Mount, Through Hole
LEMO HGG.0B.303.CLLP	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	8 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	303	100 °C	-20 C
LEMO HGG.0B.305.CLLP	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	6.5 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	305	100 °C	-20 C
LEMO HGG.0B.306.CLLP	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	2.5 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	306	100 °C	-20 C	6
LEMO HGG.0B.307.CLLPV	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	2.5 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	307	100 °C	-20 C	7
LEMO HGG.0B.307.KLLP	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G		Bronze	Potted	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	2.5 A	Shielded	Black	Bulkhead - Rear Side Nut	UL94 V-0	307	100 °C	-20 C	7
LEMO HGG.0B.303.CLLPV	IP68 - Dust Tight, Waterproof	Metal	Brass	Push-Pull	59 Áin	1.5 Ám	G	Chrome	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Gold	Polyetheretherketone (PEEK)	8 A	Shielded	Silver	Bulkhead - Rear Side Nut	UL94 V-0	303	100 °C	-20 C
