141-8SM+

Active

MINI-CIRCUITS

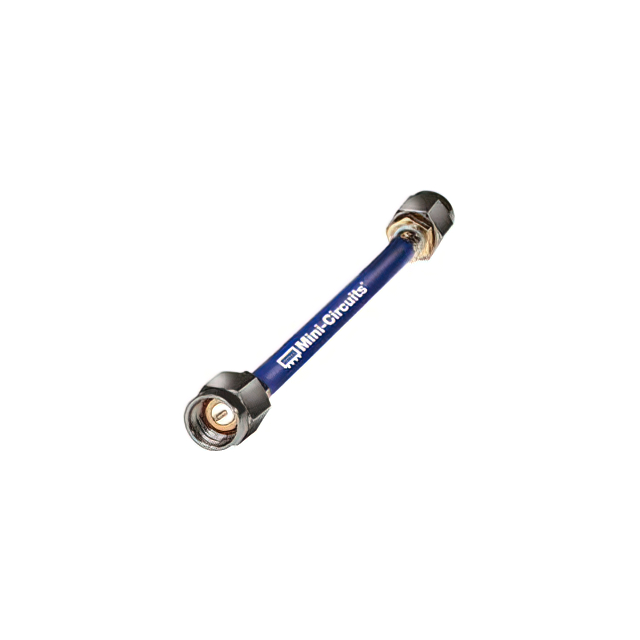

CBL ASSY SMA PLUG TO PLUG 8"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 8"

Technical Specifications

Parameters and characteristics for this part

CBL ASSY SMA PLUG TO PLUG 8"

Part	2nd Connector	1st Connector Mounting Type	Cable Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Style	2nd Contact Gender	1st Connector	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	Frequency - Max [Max]
MINI-CIRCUITS 141-8SM+	SMA Plug	Free Hanging (In-Line)	Hand Formable .141	Blue	105 ░C	-55 °C	8 in	203.2 mm	SMA to SMA	Male	SMA Plug	Free Hanging (In-Line)	50 Ohms	Male	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .141 8.000" (203.20mm)

Technical documentation and resources
