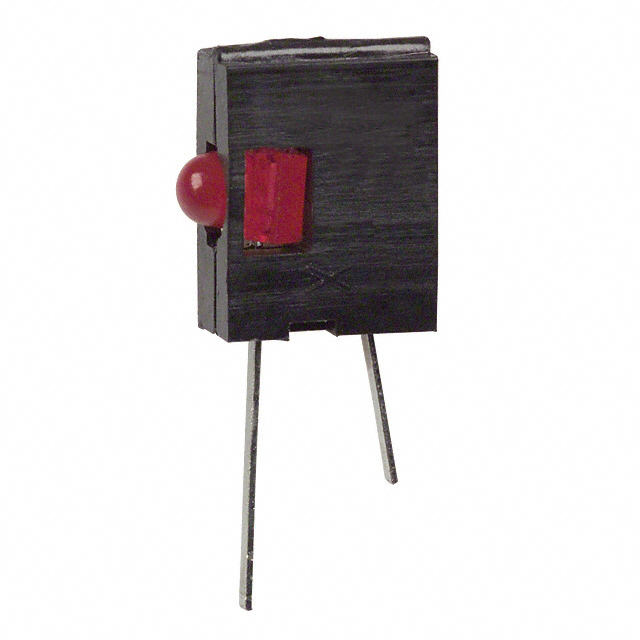

SSF-LXH555ID

Active

Lumex Opto/Components Inc.

LED CBI 1.8MM RED RA PC MNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED CBI 1.8MM RED RA PC MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH555ID	SSF-LXH555 Series

Color	Red	Red, Yellow, Green
Configuration	Single	Single
Lens Size [diameter]	1.8 mm	1.8 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused, Red
Millicandela Rating	8 mcd	8 - 45 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole, Bottom Entry
Viewing Angle	60 °	60 °
Voltage Rating	2 V	2 - 2.1 V
Wavelength - Peak	635 nm	565 - 636 nm

LED CBI 1.8MM RED RA PC MNT

Part	Lens Size [diameter]	Lens Type	Mounting Type	Millicandela Rating	Color	Lens Style	Voltage Rating	Viewing Angle	Wavelength - Peak	Configuration
Lumex Opto/Components Inc. SSF-LXH555ID	1.8 mm	Diffused, Tinted	Through Hole, Right Angle	8 mcd	Red	Round with Domed Top	2 V	60 °	635 nm	Single
Lumex Opto/Components Inc. SSF-LXH555YD	1.8 mm	Diffused, Tinted	Through Hole, Right Angle	8 mcd	Yellow	Round with Domed Top	2.1 V	60 °	585 nm	Single
Lumex Opto/Components Inc. SSF-LXH555GD	1.8 mm	Diffused, Tinted	Through Hole, Right Angle	8 mcd	Green	Round with Domed Top	2.1 V	60 °	565 nm	Single
Lumex Opto/Components Inc. SSF-LXH555SID	1.8 mm	Diffused, Red	Through Hole, Bottom Entry	45 mcd	Red	Round with Domed Top	2 V	60 °	636 nm	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Round with Domed Top 1.80mm Dia Through Hole, Right Angle
