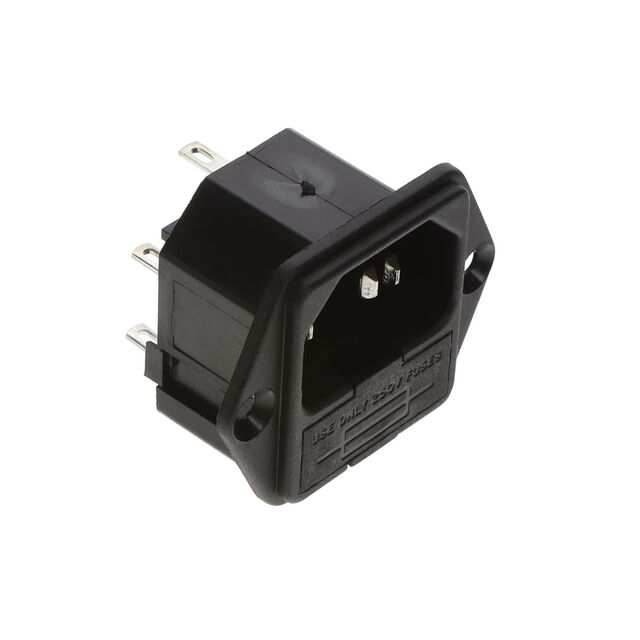

PF0002/28
ActiveBULGIN LIMITED
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PF0002/28
ActiveBULGIN LIMITED
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PF0002/28 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | VDE, CSA, UL, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Included |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 31.12 mm |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.91 | |
| 10 | $ 5.37 | |||
| 25 | $ 5.08 | |||
| 50 | $ 4.96 | |||
| 100 | $ 4.73 | |||
| 250 | $ 4.14 | |||
| 500 | $ 4.02 | |||
| 1000 | $ 3.43 | |||
| 2500 | $ 3.19 | |||
Description
General part information
PF0002 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
