QRMNV145ANXXNVGRB12E
ActiveAPEM
REAR MOUNT NVIS GREEN B 12VDC IP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QRMNV145ANXXNVGRB12E
ActiveAPEM
REAR MOUNT NVIS GREEN B 12VDC IP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QRMNV145ANXXNVGRB12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Size [diameter] | 12.75 mm |
| Millicandela Rating | 150 mcd |
| Panel Cutout Dimensions | 0.55 in |
| Panel Cutout Dimensions | 14 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 61.54 | |
Description
General part information
QRMNV145 Series

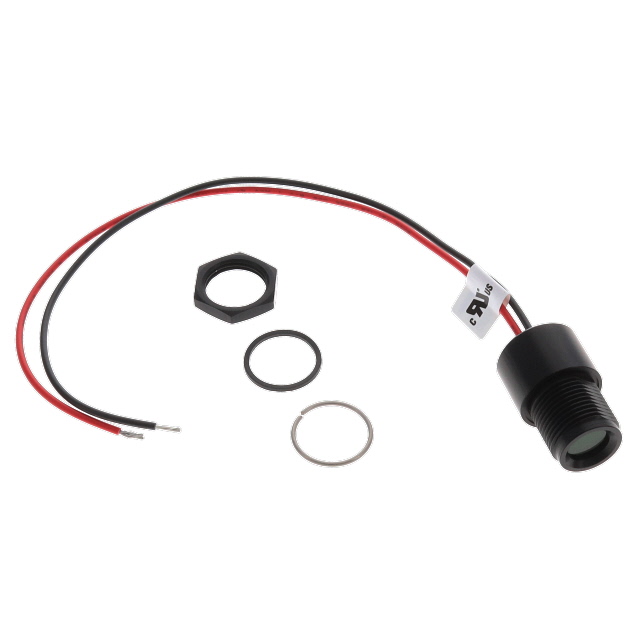

LED Panel Indicator Green 60° 12V 20mA Wire Leads - 7.87" (200.00mm)
Documents
Technical documentation and resources
