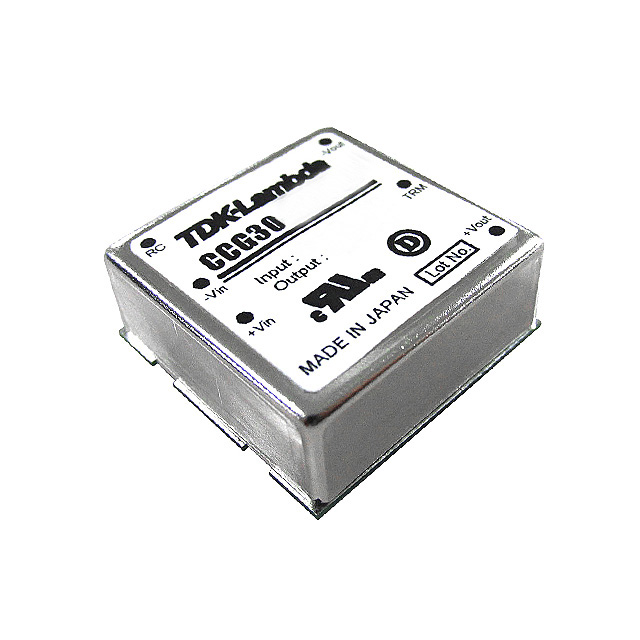

CCG30-24-05S

Active

TDK-LAMBDA

MODULE DC-DC 24VIN 1-OUT 5V 6A 30W 6-PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CCG30-24-05S

Active

TDK-LAMBDA

MODULE DC-DC 24VIN 1-OUT 5V 6A 30W 6-PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 40.37
		24	$ 37.84
Digikey	Tray	1	$ 37.66

Description

General part information

CCG30 Series

Isolated Module DC DC Converter 1 Output 5V 6A 9V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CCG30-24-05S	CCG30 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CSA, EN, UL, IEC, UKCA	CE, CSA, EN, UL, IEC, UKCA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max)	-	1 - 7 A
Current - Output (Max)	-	1 A
Current - Output (Max) [Max]	6 A	2 - 6 A
Efficiency	89 %	87 - 91 %
Features	OCP, Remote On/Off, Adjustable Output	OCP, Remote On/Off, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-DIP Module	6-DIP Module
Power (Watts)	30 W	30 W
Size / Dimension [x]	1 in	1 in
Size / Dimension [x]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [z]	0.39 in	0.39 in
Size / Dimension [z]	9.9 mm	9.9 mm
Standard Number	62368-1	62368-1
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 - 76 V
Voltage - Input (Min) [Min]	9 V	9 - 18 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	5 V	3.3 - 15 V
Voltage - Output 2	-	-15 - -12 V

CCG30 Series

MODULE DC-DC 24VIN 1-OUT 5V 6A 30W 6-PIN

Part	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Voltage - Isolation	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Type	Number of Outputs	Package / Case	Approval Agency	Control Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
TDK-LAMBDA CCG30-24-05S	85 °C	-40 °C	62368-1	1.5 kV	6 A	Through Hole	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	Adjustable Output, OCP, Remote On/Off	ITE (Commercial)	36 V	30 W	Isolated Module	1	6-DIP Module	CE, CSA, EN, IEC, UKCA, UL	Active Low, Enable	9 V	5 V	89 %
TDK-LAMBDA CCG30-24-15S	85 °C	-40 °C	62368-1	1.5 kV	2 A	Through Hole	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	Adjustable Output, OCP, Remote On/Off	ITE (Commercial)	36 V	30 W	Isolated Module	1	6-DIP Module	CE, CSA, EN, IEC, UKCA, UL	Active Low, Enable	9 V	15 V	89 %
TDK-LAMBDA CCG30-48-03S	85 °C	-40 °C	62368-1	1.5 kV		Through Hole	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	Adjustable Output, OCP, Remote On/Off	ITE (Commercial)	76 V	30 W	Isolated Module	1	6-DIP Module	CE, CSA, EN, IEC, UKCA, UL	Active Low, Enable	18 V	3.3 V	87 %	7 A
TDK-LAMBDA CCG30-48-05S	85 °C	-40 °C	62368-1	1.5 kV	6 A	Through Hole	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	Adjustable Output, OCP, Remote On/Off	ITE (Commercial)	76 V	30 W	Isolated Module	1	6-DIP Module	CE, CSA, EN, IEC, UKCA, UL	Active Low, Enable	18 V	5 V	90 %
TDK-LAMBDA CCG30-24-15D	85 °C	-40 °C	62368-1	1.5 kV		Through Hole	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	OCP, Remote On/Off	ITE (Commercial)	36 V	30 W	Isolated Module	2	6-DIP Module	CE, CSA, EN, IEC, UKCA, UL	Active Low, Enable	9 V	15 V	91 %	1 A	-15 V	1 A
TDK-LAMBDA CCG30-24-12D	85 °C	-40 °C	62368-1	1.5 kV		Through Hole	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	OCP, Remote On/Off	ITE (Commercial)	36 V	30 W	Isolated Module	2	6-DIP Module	CE, CSA, EN, IEC, UKCA, UL	Active Low, Enable	9 V	12 V	89 %	1.25 A	-12 V
