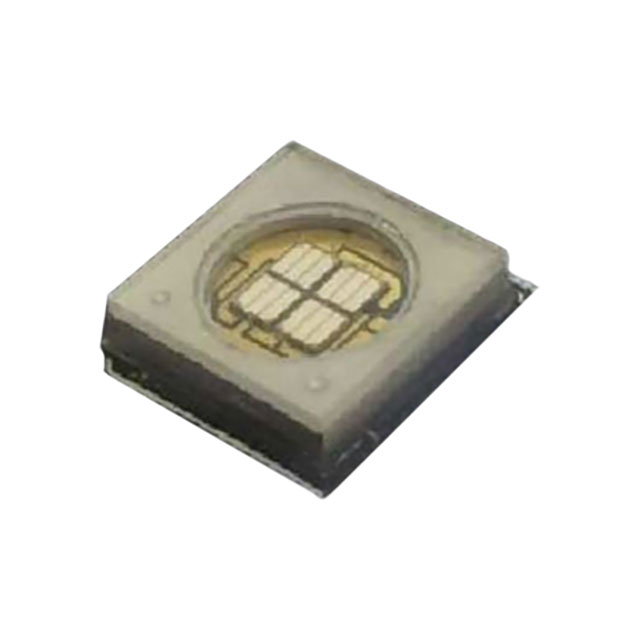

IN-C68QACTMU4

Active

Inolux

TOP VIEW / 6868 /6.8 X 6.8 X 1.5

Search across all available documentation for this part.

Active

Inolux

TOP VIEW / 6868 /6.8 X 6.8 X 1.5

Technical Specifications

Parameters and characteristics commom to parts in this series

TOP VIEW / 6868 /6.8 X 6.8 X 1.5

Part	Current - DC Forward (If) (Max)	Mounting Type	Orientation	Type	Viewing Angle	Package / Case	Wavelength [Min]	Wavelength [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Inolux IN-C68QACTMU5	1 A	Surface Mount	Top View	Ultraviolet (UV)	120 °	2727 (6868 Metric)	390 nm	400 nm	-40 °C	80 C
Inolux IN-C68QABTMU4	1 A	Surface Mount	Top View	Ultraviolet (UV)	60 °	2727 (6868 Metric)	380 nm	390 nm	-40 °C	80 C
Inolux IN-C68QACTMU4	1 A	Surface Mount	Top View	Ultraviolet (UV)	120 °	2727 (6868 Metric)	380 nm	390 nm	-40 °C	80 C
Inolux IN-C68QABTMU2	1 A	Surface Mount	Top View	Ultraviolet (UV)	60 °	2727 (6868 Metric)	365 nm	370 nm	-40 °C	80 C
Inolux IN-C68QACTMU2	1 A	Surface Mount	Top View	Ultraviolet (UV)	120 °	2727 (6868 Metric)	365 nm	370 nm	-40 °C	80 C
Inolux IN-C68QABTMU5	1 A	Surface Mount	Top View	Ultraviolet (UV)	60 °	2727 (6868 Metric)	390 nm	400 nm	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ultraviolet (UV) Emitter 380nm ~ 390nm 14V 1A 120° 2727 (6868 Metric)

Technical documentation and resources
