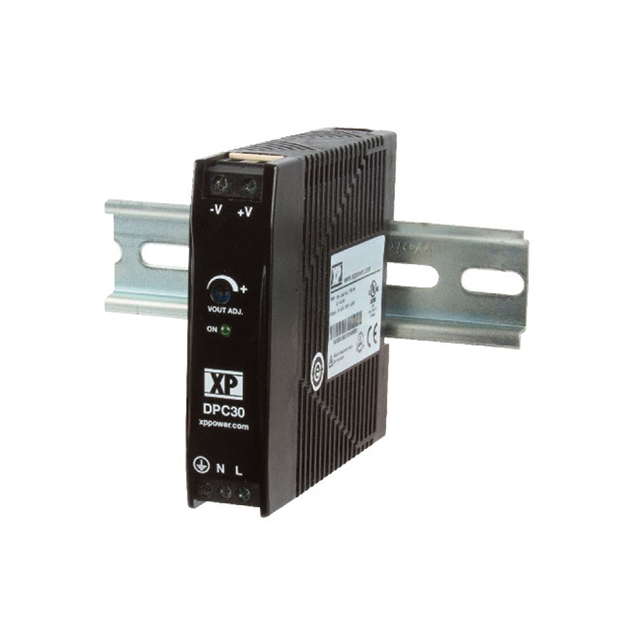

DPC30US05

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 5V 30W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 5V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	DPC30US05

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	4 A
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	30 W
Size / Dimension [x]	3.94 in
Size / Dimension [x]	100 mm
Size / Dimension [y]	0.89 in
Size / Dimension [y]	22.5 mm
Size / Dimension [z]	3.6 in
Size / Dimension [z]	90 mm
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Applications	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Input Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Current - Output (Max) [Max]	Features	Voltage - Isolation	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]
XP POWER DPC30US05	ITE (Commercial)		-25 °C	70 °C	30 W	AC	5 V	0.89 in	3.6 in	22.5 mm	3.94 in	100 mm	90 mm	1	4 A	Adjustable Output Universal Input	3000 V	CE	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 5V 30W
