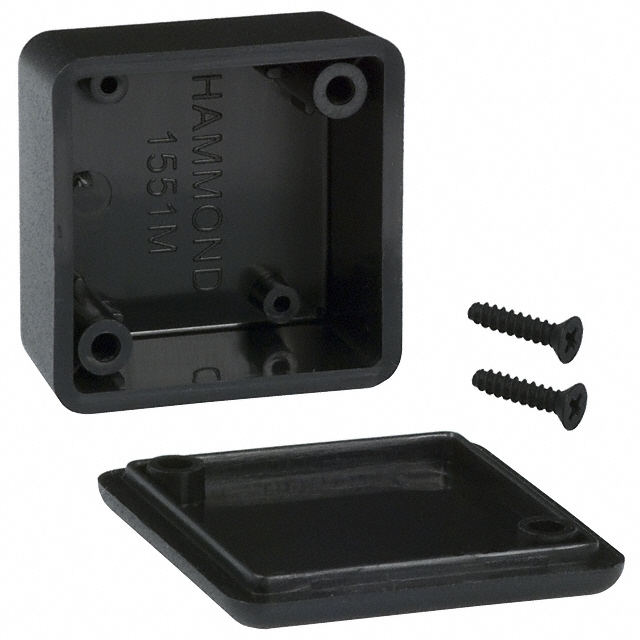

Specification	1551MBK

Area (L x W)	1.9 in²
Color	Black
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height	0.787 "
Material	ABS
Material Flammability Rating	UL94 HB
Ratings	IP54
Size / Dimension Length	1.378 in
Size / Dimension Width	1.378 in
Thickness	0.079 in

1551 Series

...

Part	Design	Material Flammability Rating	Material	Color	Height	Features	Thickness	Container Type	Ratings	Size / Dimension Width	Size / Dimension Length	Area (L x W)	Weight
Hammond Manufacturing 1551PTBU	Cover Included Hand Held	UL94 HB	ABS	Translucent - Blue	0.787 "	PCB Supports	0.079 in	Box	IP54	1.575 in	1.575 in	2.48 in²
Hammond Manufacturing 1551ATSK	Split Sides	UL94 HB	ABS	Translucent - Smoke	0.61 in		0.07 in	Box	IP54	0.79 in	1.38 in	1.08 in²
Hammond Manufacturing 1551V3WH	Cover Included Hand Held	UL94 HB	ABS	White	0.8 in		0.1 in	Box	IP30			5.58 in²
Hammond Manufacturing 1551XGY	Cover Included Hand Held	UL94 HB	ABS	Gray	0.79 in		0.08 in	Box	IP54	3.15 in	3.15 in	9.92 in²
Hammond Manufacturing 1551RFLBK	Cover Included	UL94 HB	ABS	Black	0.787 "	Mounting Flange PCB Supports	0.079 in	Box	IP54	1.969 in	1.969 in	3.88 in²
Hammond Manufacturing 1551CGY	Split Sides	UL94 HB	ABS	Gray	0.61 in		0.07 in	Box	IP54	1.18 in	2.56 in	3.02 in²
Hammond Manufacturing 1551JGY	Cover Included Hand Held	UL94 HB	ABS	Gray	0.591 in	PCB Supports	0.079 in	Box	IP54	1.378 in	2.362 in	3.25 in²
Hammond Manufacturing 1551HBK	Cover Included Hand Held	UL94 HB	ABS	Black	0.787 "	PCB Supports	0.079 in	Box	IP54	1.378 in	2.362 in	3.25 in²	0.044 lb
Hammond Manufacturing 1551BCLR	Split Sides	UL94 HB	ABS	Translucent - Clear	0.61 in		0.07 in	Box	IP54	0.98 in	1.97 in	1.94 in²
Hammond Manufacturing 1551JFLBK	Cover Included	UL94 HB	ABS	Black	0.591 in	Mounting Flange PCB Supports	0.079 in	Box	IP54	1.378 in	2.362 in	3.25 in²
