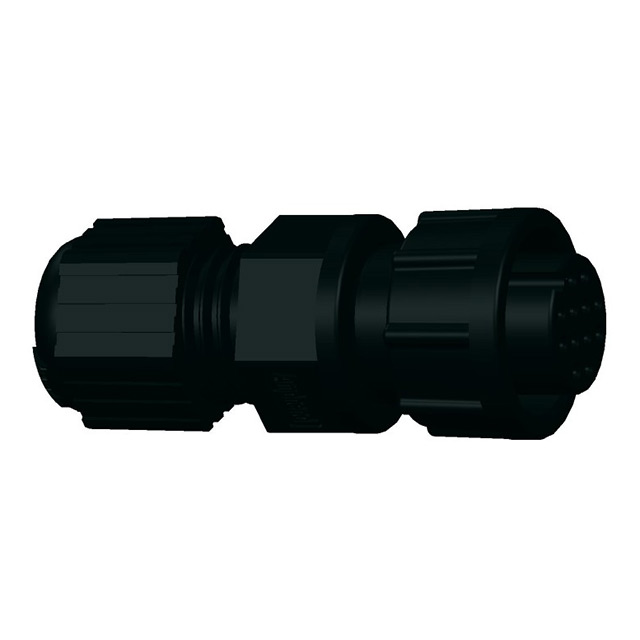

BU-12BFFA-LL7001

Active

Amphenol LTW

CONN PLUG FMALE 12P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG FMALE 12P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BU-12BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Insert Material	Current Rating (Amps)	Backshell Material, Plating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Finish - Mating	Ingress Protection	Fastening Type	Shielding	Shell Size - Insert	Color	Mounting Type	Shell Material	Number of Positions	Connector Type	Primary Material	Contact Material
Amphenol LTW BU-12BFFA-LL7001	Polyamide (PA) Nylon Glass Filled	2 A	Nylon Polyamide (PA)	Backshell Coupling Nut	-40 °C	105 ░C	Keyed	Gold	IP67 - Dust Tight Waterproof	Bayonet Lock	Unshielded	B	Black	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	12	Female Sockets Plug	Plastic	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Female Sockets Solder Cup
