1415106

Active

Phoenix Contact

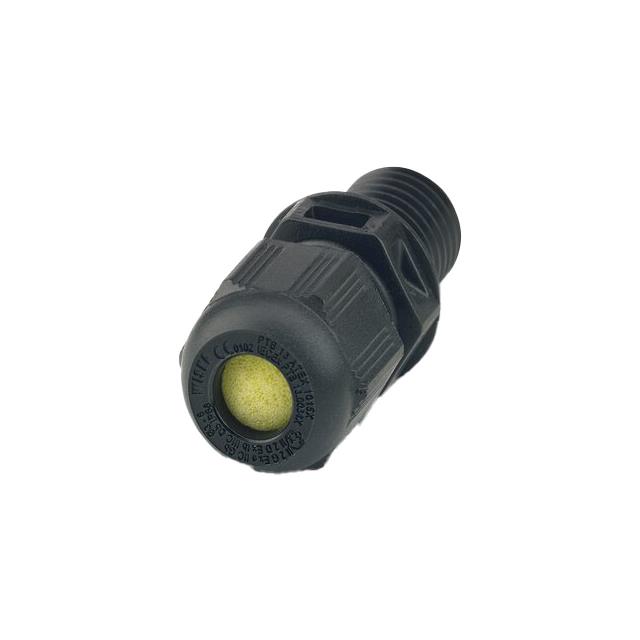

CABLE GLAND 3-6MM M12 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-6MM M12 POLYAMIDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 2.12

General part information

Cable Gland Polyamide (PA), Nylon M12 Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1415106	G-ESIS-M12 Series

Color	Black	Black, Silver
Includes	Seal	Seal, O-Ring
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in	0.236 - 0.276 in
Outside Cable Diameter (Max) [Max] [diameter]	6 mm	6 - 7 mm
Outside Cable Diameter (Min)	-	0.157 in
Outside Cable Diameter (Min)	-	4 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.118 in
Thread Length	0.591 in	0.472 - 0.591 in
Thread Length	15 mm	12 - 15 mm
Thread Size	M12	M12
Type	Cable Gland	Cable Gland

CABLE GLAND 3-6MM M12 POLYAMIDE

Part	Type	Includes	Thread Length	Thread Length	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Phoenix Contact 1415106	Cable Gland	Seal	0.591 in	15 mm	M12	-40 °C	75 ░C	IP66/IP68	0.236 in	6 mm	Polyamide (PA), Nylon	Black	3 mm	0.118 in
Phoenix Contact 1415123	Cable Gland	O-Ring, Seal	0.472 in	12 mm	M12	-40 °C	75 ░C	IP66/IP68	0.276 in	7 mm	Brass, Nickel Plated	Silver			0.157 in	4 mm
