PT01E-8-4P(SR)
ActiveAmphenol Industrial Operations

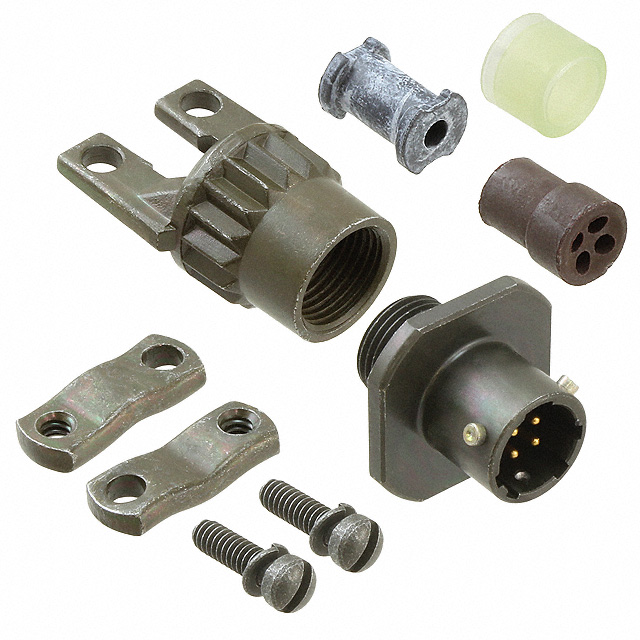

CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT01E-8-4P(SR)
ActiveAmphenol Industrial Operations
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT01E-8-4P(SR) | PT01E Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum, Black Zinc Cobalt |
| Cable Opening [custom] | 3.18 mm | 3.18 - 15.88 mm |
| Cable Opening [custom] | 0.125 in | 0.125 - 0.625 in |
| Color | Olive Drab | Olive Drab, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell, Strain Relief, Cable Clamp | Backshell, Strain Relief, Cable Clamp |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 - 41 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | Y, N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Black Zinc Cobalt |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-4 | 12-3, 12-8, 12-4, 8-4, 10-6, 14-12 |
| Shell Size - Insert | - | 14 - 20 |
| Shell Size - Insert | - | 18 - 41 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.06 | |
| 10 | $ 21.65 | |||
| 25 | $ 19.61 | |||
| 50 | $ 18.24 | |||
| 100 | $ 16.99 | |||
| 250 | $ 15.52 | |||
| 500 | $ 14.53 | |||
PT01E Series
CONN RCPT 3POS INLINE PIN
| Part | Applications | Fastening Type | Insert Material | Color | Primary Material | Shielding | Connector Type | Shell Size - Insert | Ingress Protection | Qualification | Shell Finish | Mounting Type | Contact Material | Contact Finish - Mating | Backshell Material, Plating | Orientation | Cable Opening [custom] | Cable Opening [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Features | Number of Positions | Voltage Rating | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT01E-12-3PY(SR) | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | 12-3 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | Y | 7.92 mm | 0.312 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | ||||
Amphenol Industrial Operations PT01E12-8P-SR | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | 12-8 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 7.92 mm | 0.312 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 8 | |||
Amphenol Industrial Operations PT01E-12-10P(SR) | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 7.92 mm | 0.312 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 10 | ||||
Amphenol Industrial Operations PT01E12-4P-SR | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | 12-4 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 7.92 mm | 0.312 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 4 | 600 VAC | ||
Amphenol Industrial Operations PT01E12-4S-SR | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Receptacle, Female Sockets | 12-4 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 7.92 mm | 0.312 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 4 | |||
Amphenol Industrial Operations PT01E14-18P-476 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Bayonet Lock | Neoprene | Black | Metal | Unshielded | Male Pins, Receptacle | Environment Resistant | MIL-DTL-26482 Series I | Black Zinc Cobalt | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Black Zinc Cobalt | N | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp | 18 | 14 | 18 | ||||
Amphenol Industrial Operations PT01E-8-4P(SR) | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | 8-4 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 3.18 mm | 0.125 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 4 | |||
Amphenol Industrial Operations PT01E-10-6P | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | 10-6 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | -55 °C | 125 °C | Aluminum | Backshell | 6 | |||||
Amphenol Industrial Operations PT01E16-8S-SR | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Receptacle, Female Sockets | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 12.7 mm | 0.5 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 8 | ||||
Amphenol Industrial Operations PT01E-12-10S(SR) | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Receptacle, Female Sockets | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 7.92 mm | 0.312 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 10 | ||||
Amphenol Industrial Operations PT01E14-12P-476 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Bayonet Lock | Neoprene | Black | Metal | Unshielded | Male Pins, Receptacle | 14-12 | Environment Resistant | MIL-DTL-26482 Series I | Black Zinc Cobalt | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Black Zinc Cobalt | N | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp | 12 | |||||
Amphenol Industrial Operations PT01E-10-6P(SR) | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | 10-6 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 4.78 mm | 0.188 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 6 | |||
Amphenol Industrial Operations PT01E-10-6PW | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Male Pins, Receptacle | 10-6 | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | W | -55 °C | 125 °C | Aluminum | Backshell | 6 | |||||
Amphenol Industrial Operations PT01E20-41S-SR | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Bayonet Lock | Neoprene | Olive Drab | Metal | Unshielded | Receptacle, Female Sockets | Environment Resistant | MIL-DTL-26482 Series I | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Copper Alloy | Gold | Aluminum, Olive Drab Cadmium | N | 15.88 mm | 0.625 in | -55 °C | 125 °C | Aluminum | Backshell, Cable Clamp, Strain Relief | 41 | 600 VAC | 20 | 41 |
Description
General part information
PT01E Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
