DCA-20PC-5-DC1-RL-C

Active

Murata Power Solutions Inc.

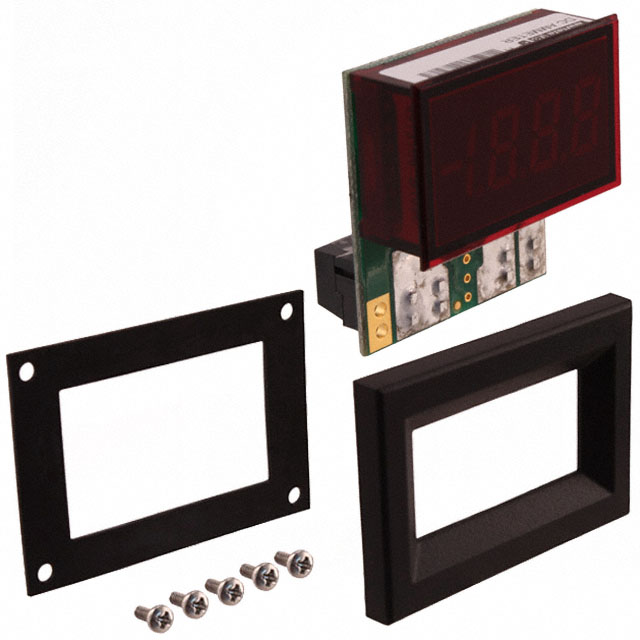

AMMETER 0-1.999A LED PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DCA-20PC-5-DC1-RL-C

Active

Murata Power Solutions Inc.

AMMETER 0-1.999A LED PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DCA-20PC-5-DC1-RL-C	DCA-20PC Series

	-	-
Display Characters - Height	9.4 mm	9.4 mm
Display Characters - Height	0.37 in	0.37 in
Display Type	LED - Red Characters	LED - Red Characters, LED - Green Characters
Measuring Range [Max]	1.999 A	1.999 - 199.9 A
Measuring Range [Min]	0 A	0 A
Measuring Type	Current	Current
Mounting Type	Panel Mount - Bezel	Panel Mount - Bezel
Number of Characters Per Row	3.5	3.5
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [x]	33.93 mm	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm	21.29 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Ammeter	Ammeter
Voltage - Supply [Max]	40 VDC	36 - 40 V
Voltage - Supply [Min]	5 V	5 - 8 V
Weight	0.037 lb	0.037 - 0.038 lb
Weight	16.78 g	16.78 - 17.24 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 62.37

DCA-20PC Series

AMMETER 0-1.999A LED PANEL MOUNT

Part	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Weight	Weight	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Display Characters - Height	Display Characters - Height	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Measuring Type	Type	Measuring Range [Min]	Measuring Range [Max]	Display Type
Murata Power Solutions Inc. DCA-20PC-5-DC4-BS-C	3.5	8 V	36 V	0.038 lb	17.24 g	Screw Terminal	60 °C	0 °C	Panel Mount - Bezel	9.4 mm	0.37 in	33.93 mm	21.29 mm	Current	Ammeter	0 A	1.999 A
Murata Power Solutions Inc. DCA-20PC-4-DC1-BL-C
Murata Power Solutions Inc. DCA-20PC-6-DC1-RL-C
Murata Power Solutions Inc. DCA-20PC-5-DC1-RL-C	3.5	5 V	40 VDC	0.037 lb	16.78 g	Screw Terminal	60 °C	0 °C	Panel Mount - Bezel	9.4 mm	0.37 in	33.93 mm	21.29 mm	Current	Ammeter	0 A	1.999 A	LED - Red Characters
Murata Power Solutions Inc. DCA-20PC-1-DC4-GS-C	3.5	8 V	36 V	0.038 lb	17.24 g	Screw Terminal	60 °C	0 °C	Panel Mount - Bezel	9.4 mm	0.37 in	33.93 mm	21.29 mm	Current	Ammeter		199.9 µA	LED - Green Characters
Murata Power Solutions Inc. DCA-20PC-1-DC1-PGL-C	3.5	5 V	40 VDC	0.038 lb	17.24 g	Screw Terminal	60 °C	0 °C	Panel Mount - Bezel	9.4 mm	0.37 in	33.93 mm	21.29 mm	Current	Ammeter		199.9 µA	LED - Green Characters
Murata Power Solutions Inc. DCA-20PC-4-DC4-RL-C	3.5	8 V	36 V	0.037 lb	16.78 g	Screw Terminal	60 °C	0 °C	Panel Mount - Bezel	9.4 mm	0.37 in	33.93 mm	21.29 mm	Current	Ammeter	0 A	199.9 mA	LED - Red Characters
Murata Power Solutions Inc. DCA-20PC-3-DC4-RL-C	3.5	8 V	36 V	0.038 lb	17.24 g	Screw Terminal	60 °C	0 °C	Panel Mount - Bezel	9.4 mm	0.37 in	33.93 mm	21.29 mm	Current	Ammeter	0 A	19.99 mA	LED - Red Characters
Murata Power Solutions Inc. DCA-20PC-6-DC4-BS-C	3.5	8 V	36 V	0.038 lb	17.24 g	Screw Terminal	60 °C	0 °C	Panel Mount - Bezel	9.4 mm	0.37 in	33.93 mm	21.29 mm	Current	Ammeter	0	19.99 A
Murata Power Solutions Inc. DCA-20PC-4-DC4-RL-C
