S2S5FA0F

Active

SHARP/Socle Technology

PHOTOTRIAC COUPLER

Search across all available documentation for this part.

Active

SHARP/Socle Technology

PHOTOTRIAC COUPLER

Technical Specifications

Parameters and characteristics for this part

PHOTOTRIAC COUPLER

Part	Static dV/dt (Min) [Min]	Number of Channels	Mounting Type	Current - On State (It (RMS)) (Max)	Voltage - Isolation	Package / Case [y]	Package / Case	Package / Case [x]	Voltage - Off State	Current - DC Forward (If) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Hold (Ih)	Output Type	Zero Crossing Circuit
SHARP/Socle Technology S2S5FA0F	500 V/µs	1	Surface Mount	50 mA	3750 Vrms	4.4 mm	4-SOIC	0.173 in	600 V	50 mA	100 °C	-30 ░C	4-SMD	3.5 mA	Triac

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	60000	$ 0.29

General part information

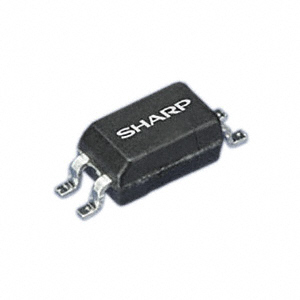

Optoisolator Triac Output 3750Vrms 1 Channel 4-SMD
