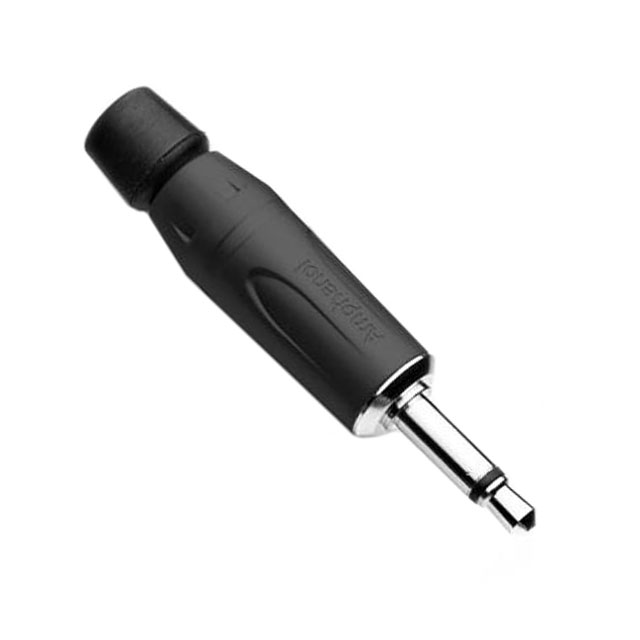

KM2PB-AU

Active

AMPHENOL AUDIO

CONN PLUG MONO 3.5MM

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG MONO 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	KM2PB-AU

Actual Diameter [diameter]	0.138 "
Actual Diameter [diameter]	3.5 mm
Body Color	Gold, Black
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating [custom]	Gold
Gender	Male
Housing Material	Zinc Alloy
Includes	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mating Length/Depth	0.551 in
Mating Length/Depth	14 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)

CONN PLUG MONO 3.5MM

Part	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Includes	Gender	Signal Lines	Termination	Internal Switch(s)	Body Color	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Housing Material	Contact Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
AMPHENOL AUDIO KM2PB-AU	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line)	1 Connector, 1 Handle, 1 Insulator Tube	Male	Mono	Solder Eyelet(s)		Black, Gold	Gold	0.551 in	14 mm	Phone Plug	0.138 "	3.5 mm	Unshielded	Zinc Alloy	Brass	2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Mono Connector Solder Eyelet(s)
