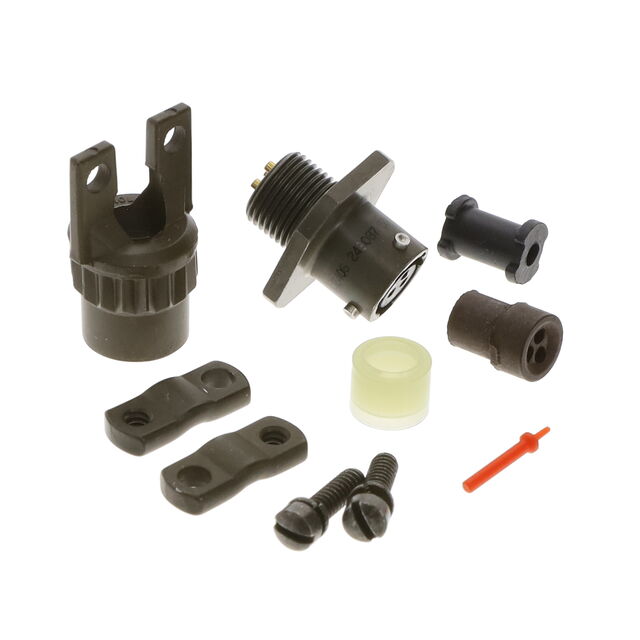

MS3111F8-3S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3111F8-3S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3111F8-3S | MS3111F8 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-3 | 8-3, 8-4 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 80.29 | |
| 10 | $ 73.67 | |||
| 25 | $ 70.84 | |||
| 50 | $ 68.48 | |||
| 100 | $ 64.70 | |||
MS3111F8 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Shielding | Ingress Protection | Shell Material | Voltage Rating | Applications | Contact Material | Contact Finish - Mating | Qualification | Shell Size - Insert | Mounting Type | Insert Material | Color | Current Rating (Amps) | Orientation | Connector Type | Primary Material | Shell Finish | Fastening Type | Features | Backshell Material, Plating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3111F8-3S | -55 °C | 125 °C | Military | Unshielded | Environment Resistant | Aluminum | 600 VAC | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | Gold | MIL-DTL-26482 Series I | 8-3 | Free Hanging (In-Line) | Neoprene | Olive Drab | 7.5 A | N | Receptacle, Female Sockets | Metal | Olive Drab Chromate over Cadmium | Bayonet Lock | Backshell, Cable Clamp | ||
Amphenol Industrial Operations MS3111F8-4S | -55 °C | 125 °C | Military | Unshielded | Environment Resistant | Aluminum | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Copper Alloy | Gold | MIL-DTL-26482 Series I | 8-4 | Free Hanging (In-Line) | Neoprene | Olive Drab | N | Receptacle, Female Sockets | Metal | Olive Drab Chromate over Cadmium | Bayonet Lock | Backshell, Cable Clamp | Aluminum, Olive Drab Chromate over Cadmium | 4 |
Description
General part information
MS3111F8 Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
