Amphenol CONEC

CONN D-SUB RCPT/PLUG 3P R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT/PLUG 3P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	303W3CSXX56N40X

Backset Spacing	11.65 mm
Backset Spacing	0.459 "
Color	Green
Connector Style	D-Sub, Combo
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder

Part	Number of Rows	Shell Finish Thickness	Shell Finish Thickness	Mounting Type	Flange Feature	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Positions	Contact Type	Shell Size, Connector Layout	Color	Note	Connector Style	Contact Finish	Voltage Rating	Material Flammability Rating	Contact Material	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Termination	Features
Amphenol CONEC 303W3CSXX99A10X	1	320 µin	8.13 µm	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Receptacle for Female Contacts	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3	Coax Power	2 (DA A) 3V3 3W3CS 3W3K	Green	Contacts Not Included	Combo D-Sub
Amphenol CONEC 303W3CSXX62A10X	1			Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Receptacle Female Sockets	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3	Power		Green		Combo D-Sub	Gold	250 VDC	UL94 V-0	Copper Alloy	20 A	2 (DA A)	3W3
Amphenol CONEC 303W3CSXX69E40X	1					Receptacle Female Sockets	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3	Power		Green		Combo D-Sub	Gold	250 VDC	UL94 V-0	Copper Alloy	20 A	2 (DA A)	3W3
Amphenol CONEC 303W3CSXX56N40X	1			Board Edge Right Angle Through Hole	Housing/Shell (4-40)	Female Sockets Male Pins Receptacle	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	3	Power		Green		Combo D-Sub	Gold		UL94 V-0	Copper Alloy	20 A	2 (DA A)	3W3	0.76 Ám	30 Áin	11.65 mm	0.459 "	Solder	Board Lock Mounting Brackets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 16.26

General part information

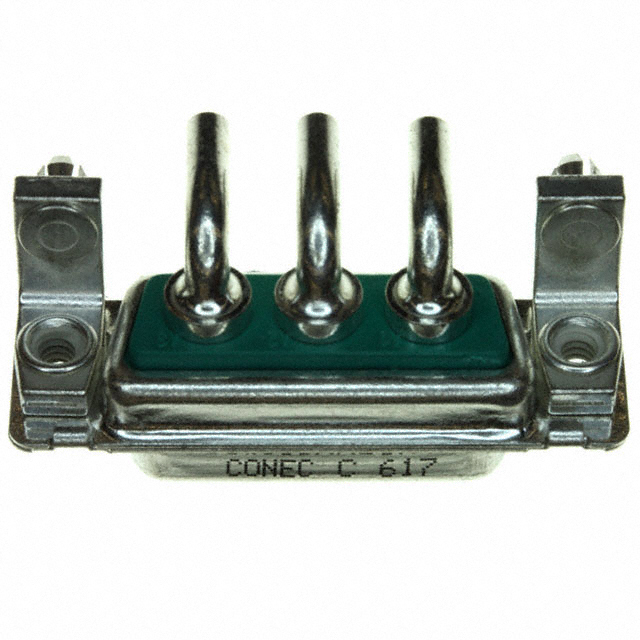

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
