W28-6HU

Active

Vector Electronics

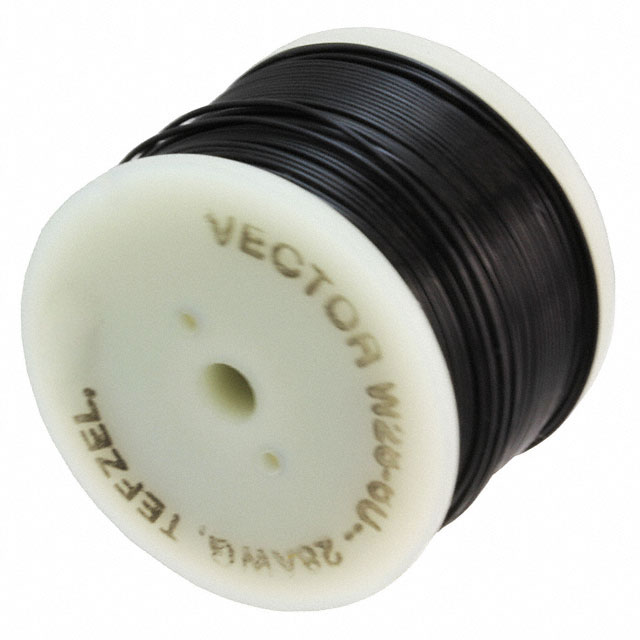

WIRE WW 28AWG ETFE BLACK 150'

Search across all available documentation for this part.

Active

Vector Electronics

WIRE WW 28AWG ETFE BLACK 150'

Technical Specifications

Parameters and characteristics for this part

Specification	W28-6HU

Conductor Diameter [diameter]	0.32 mm
Conductor Diameter [diameter]	0.013 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.58 mm
Jacket (Insulation) Diameter [diameter]	0.023 in
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Thickness	0.005 in
Jacket (Insulation) Thickness	0.13 mm
Jacket Color	Black
Length	45.72 m
Length	150 ft
Operating Temperature	150 °C
Wire Gauge	28 AWG

WIRE WW 28AWG ETFE BLACK 150'

Part	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Conductor Plating	Operating Temperature	Conductor Material	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color
Vector Electronics W28-6HU	28 AWG	Ethylene Tetrafluoroethylene (ETFE)	0.005 in	0.13 mm	45.72 m	150 ft	Silver	150 °C	Copper, Bare	0.32 mm	0.013 in	0.58 mm	0.023 in	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 28 AWG Black Ethylene Tetrafluoroethylene (ETFE) 150' (45.72m)
