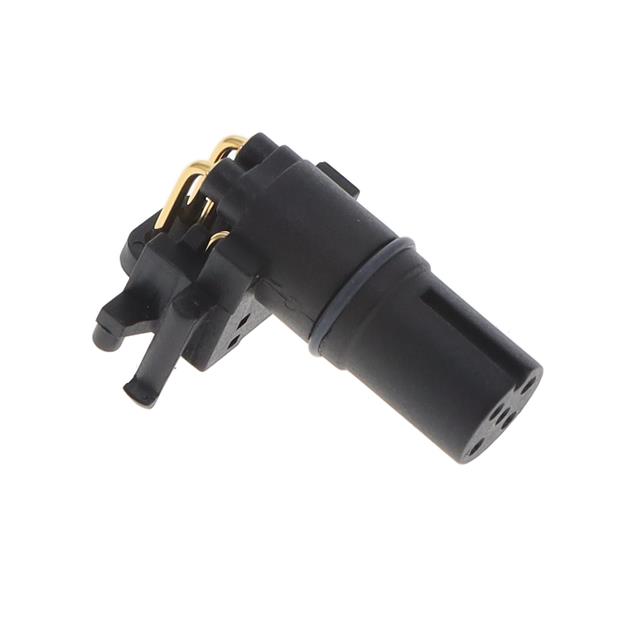

M12A-05PFFR-EE0001
ActiveAmphenol LTW
M12 A CODE 90 DIP, PLASTIC, F CO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A-05PFFR-EE0001
ActiveAmphenol LTW
M12 A CODE 90 DIP, PLASTIC, F CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-05PFFR-EE0001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.71 | |
| 10 | $ 6.97 | |||
| 25 | $ 6.58 | |||
| 45 | $ 6.42 | |||
| 90 | $ 6.10 | |||
| 270 | $ 5.46 | |||
| 450 | $ 5.14 | |||
| 945 | $ 4.50 | |||
Description
General part information
M12A-05PFFR Series
5 Position Circular Connector Receptacle, Female Sockets Solder
