97151.6

Active

Pflitsch

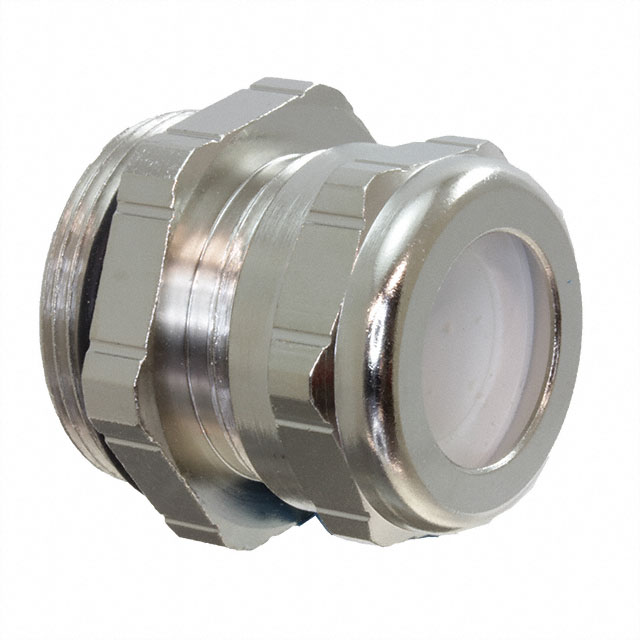

CABLE GLAND 11.43-15.5MM M32

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 11.43-15.5MM M32

Technical Specifications

Parameters and characteristics for this part

Specification	97151.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [diameter]	15.5 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.61 in
Outside Cable Diameter (Min) [Min] [diameter]	11.43 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.45 in
Panel Hole Size	1.26 in
Panel Hole Size	32 mm
Thread Length	7.87 mm
Thread Length	0.31 in
Thread Size	M32x1.5
Type	Cable Gland

Part	Panel Hole Size	Panel Hole Size	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Material	Type	Thread Length	Thread Length	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [diameter]
Pflitsch 97151.6	1.26 in	32 mm	Sealing Ring	-40 °C	300 °C	M32x1.5	Brass Nickel Plated	Cable Gland	7.87 mm	0.31 in	Silver	11.43 mm	0.45 in	IP68 - Dust Tight Waterproof; NEMA 4X	0.61 in	15.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 27.18

General part information

Cable Gland Brass, Nickel Plated M32x1.5 Silver
