BHR-24-HUA-ML

Active

Adam Tech

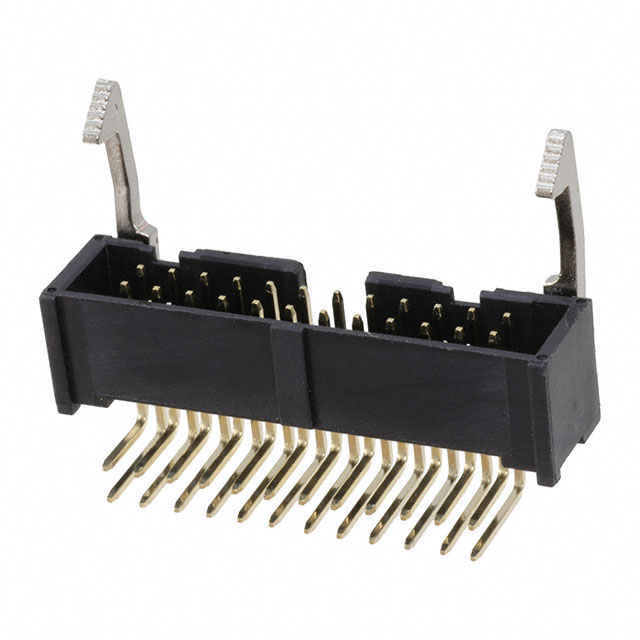

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

BHR-24-HUA-ML

Active

Adam Tech

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-24-HUA-ML

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

BHR-24 Series

Part	Style	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Insulation Color	Termination	Material Flammability Rating	Mounting Type	Insulation Material	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Post	Voltage Rating	Connector Type	Contact Finish Thickness - Mating	Number of Positions	Shrouding	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post
Adam Tech BHR-24-HUA	Board to Board Cable	Gold	Push-Pull	All	Male Pin	2	0.1 in	2.54 mm	0.356 in	9.05 mm	Black	Solder	UL94 V-0	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Square	0.134 in	3.4 mm	-40 °C	105 ░C	Gold	Brass	Flash	250 VAC	Header	Flash	24	Shrouded - 4 Wall	Keying Slot	2.54 mm	0.1 in
Adam Tech BHR-24-VSG-SMT	Board to Board Cable	Tin	Push-Pull	All	Male Pin	2	0.1 in	2.54 mm	0.413 in	10.49 mm	Black	Solder	UL94 V-0	Surface Mount	Thermoplastic	Square			-40 °C	105 ░C	Gold	Brass		250 VAC	Header	Flash	24	Shrouded - 4 Wall	Keying Slot	2.54 mm	0.1 in	3 A
Adam Tech BHR-24-HUA-ML	Board to Board Cable	Gold	Latch Lock/Eject Hooks Long	All	Male Pin	2	0.1 in	2.54 mm			Black	Solder	UL94 V-0	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Square	0.126 in		-40 °C	105 ░C	Gold	Brass	Flash	350 VAC	Header	Flash	24	Shrouded - 4 Wall	Keying Slot	2.54 mm	0.1 in	3 A	9 mm	0.354 in	3.2 mm
